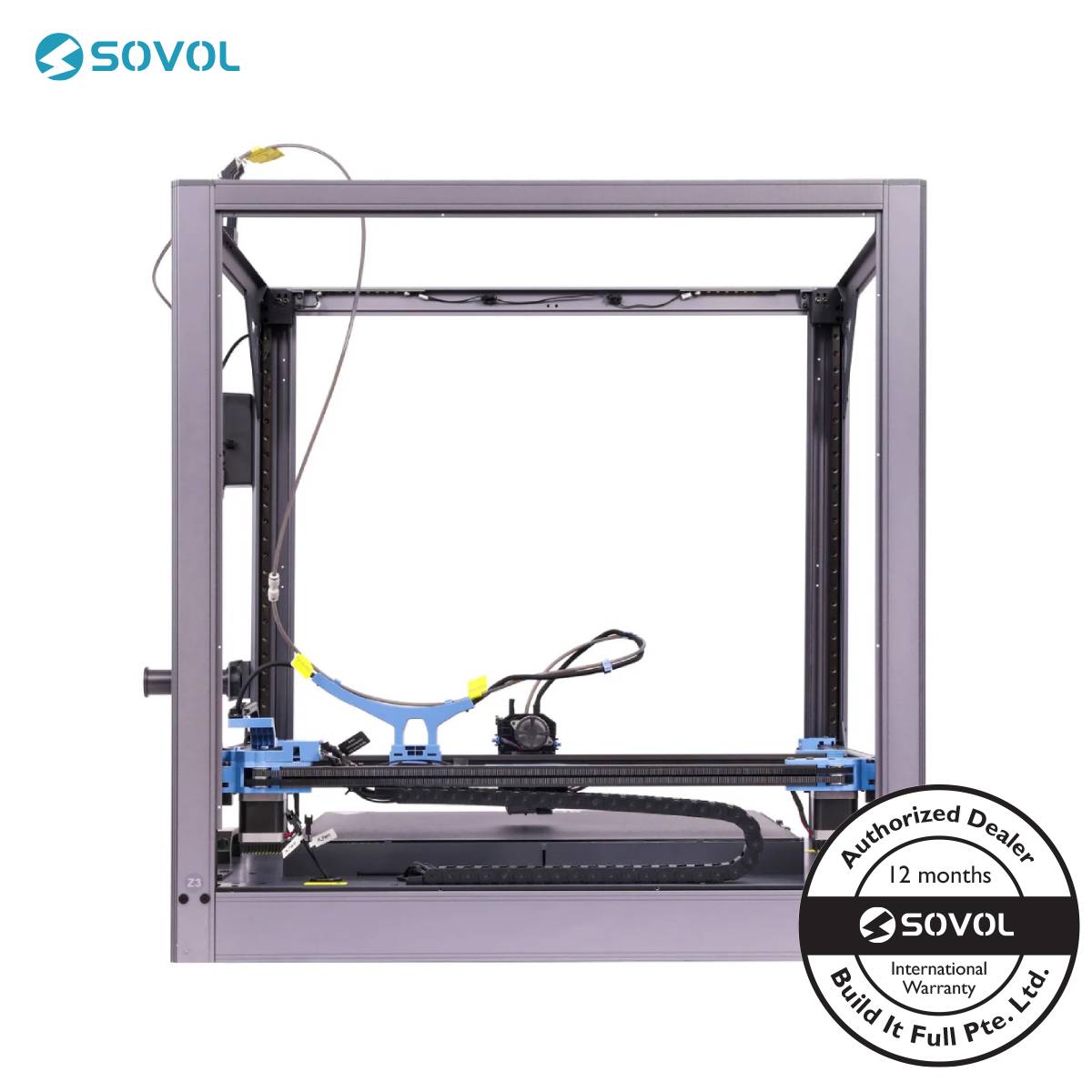

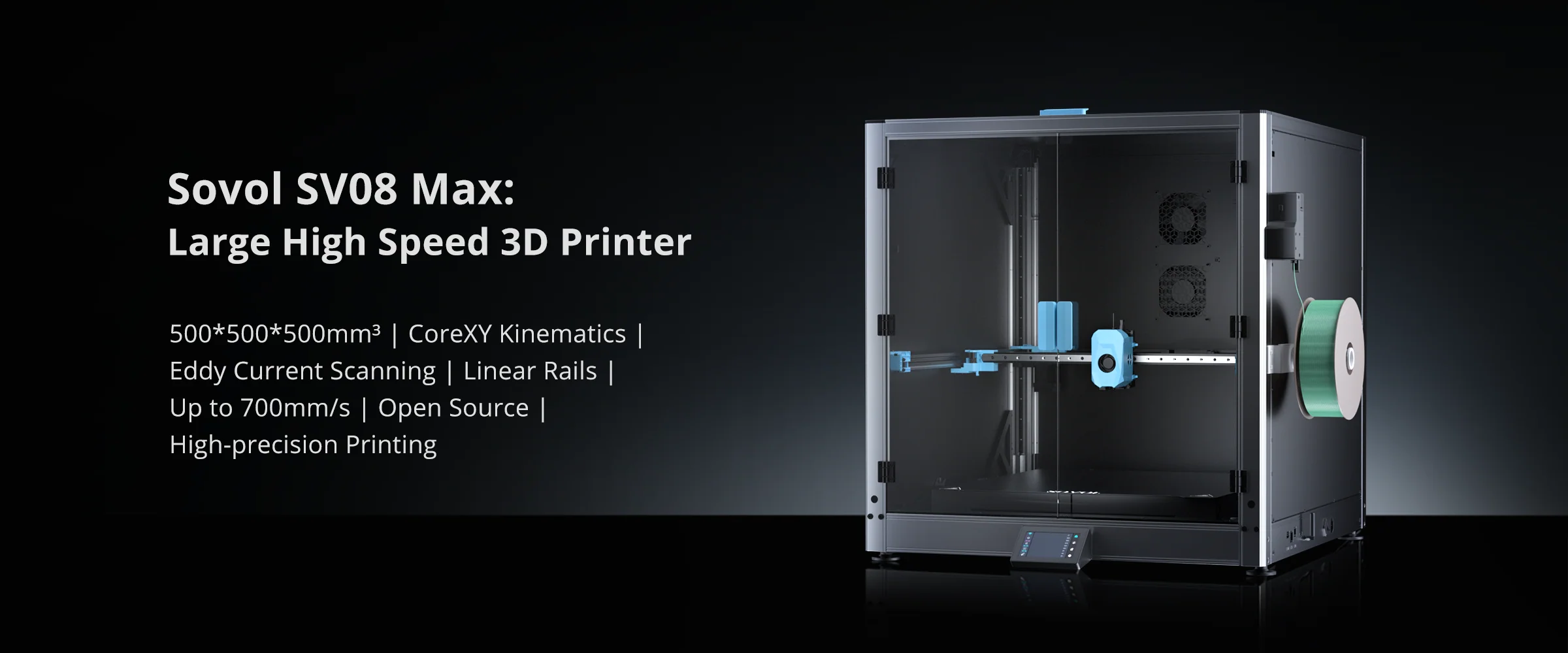

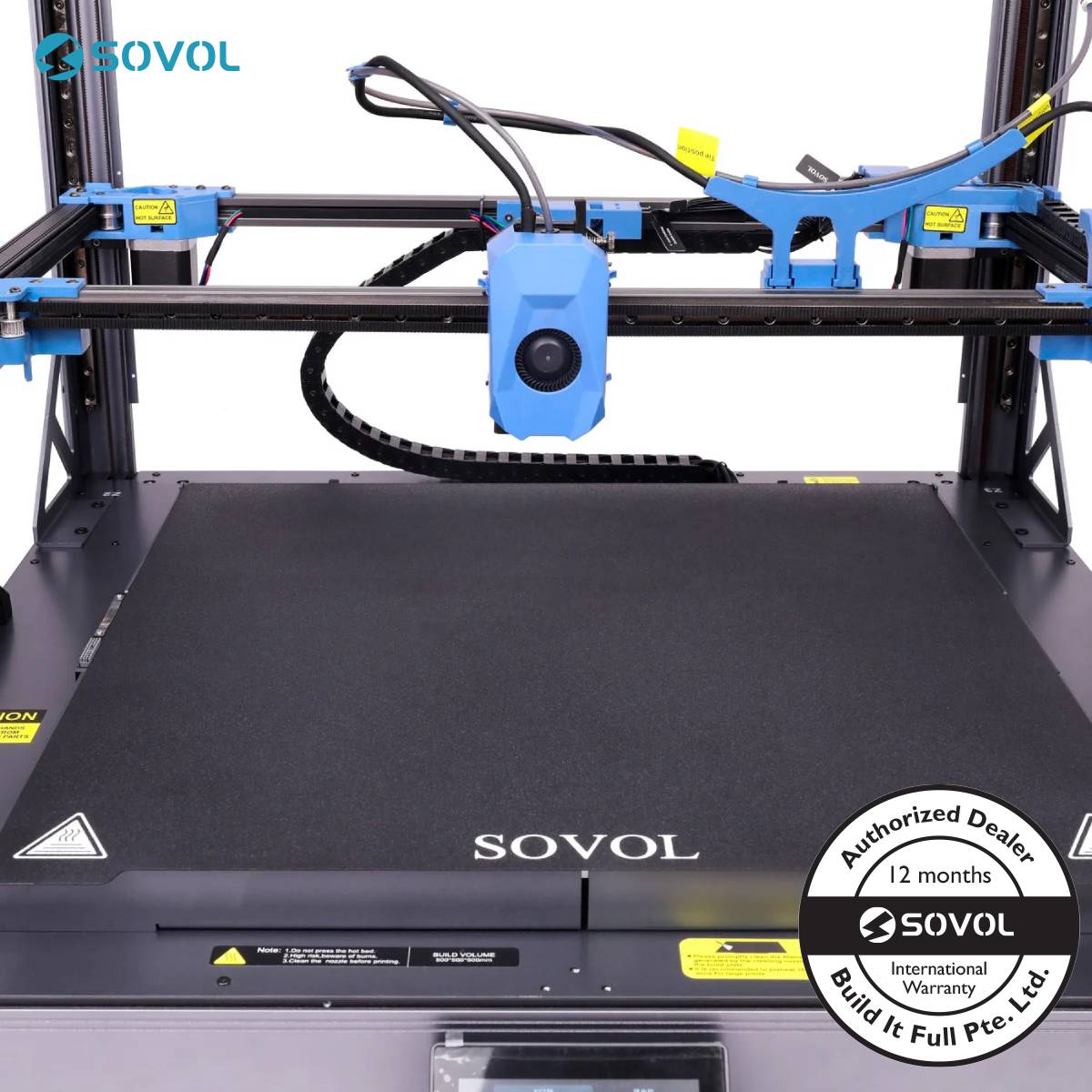

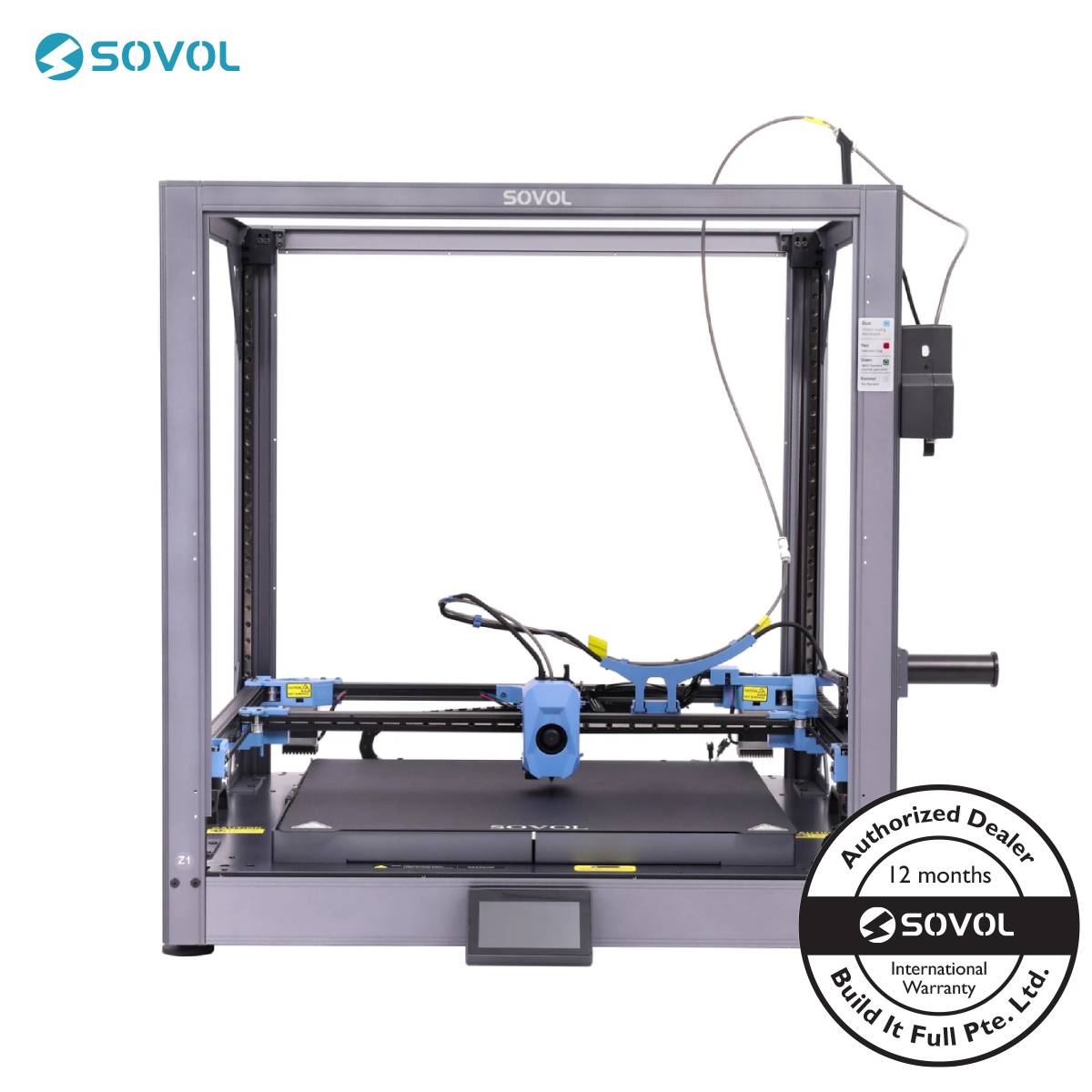

Sovol SV08 Max 3D Printer
$2,024.00 $1,713.00
- Up to 700mm/s
- CoreXY Kinematics
- XYZ Full Linear Rails

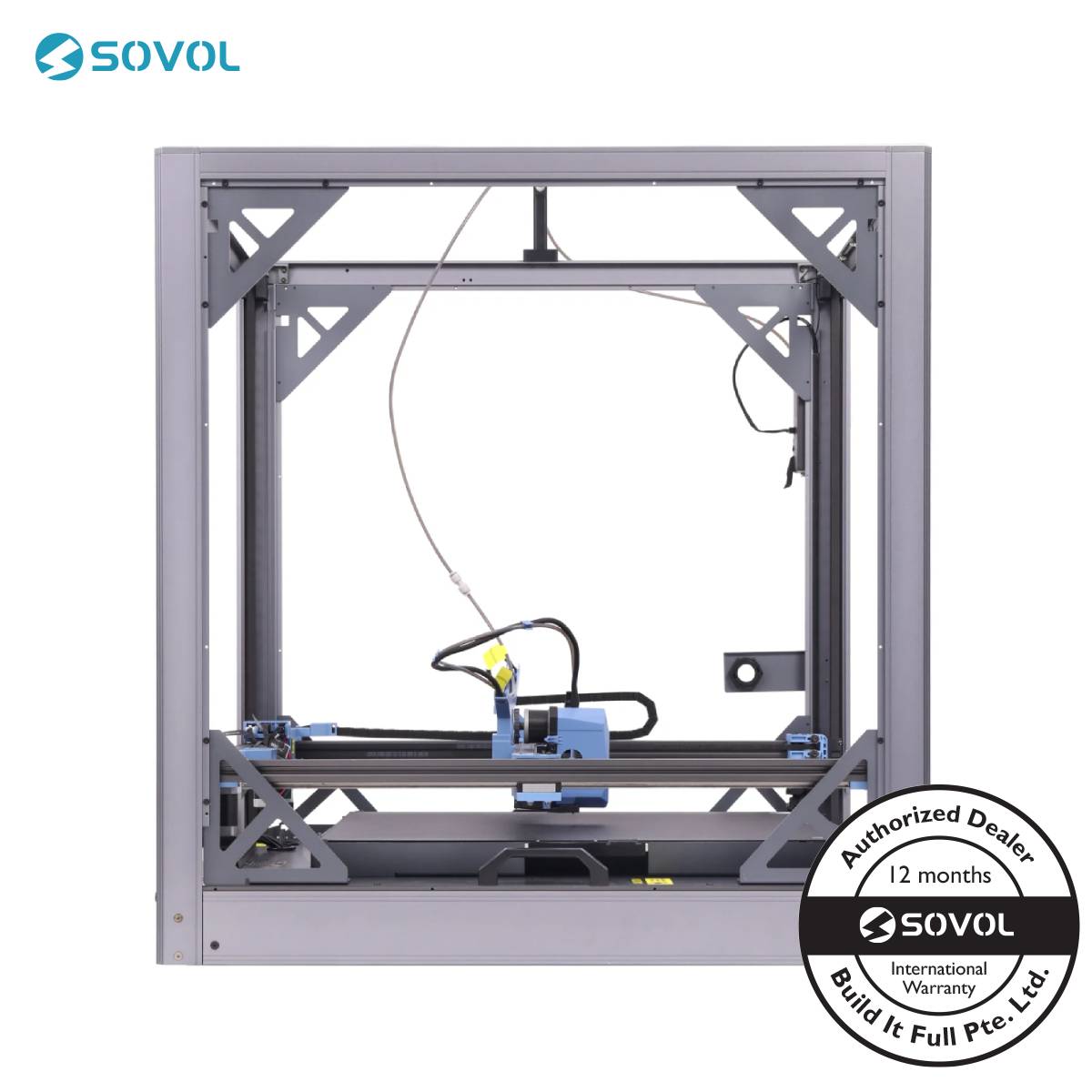

- Aluminum Alloy Frame
- Eddy Current Scanning
- Nozzle Temperature: ≤300℃ (572℉)
- Hot bed Temperature: ≤100℃ (212℉)
- Optional chamber heating module.
- Build Volume: 500×500×500 mm³ (500*500*450 mm³ with enclosure kit)

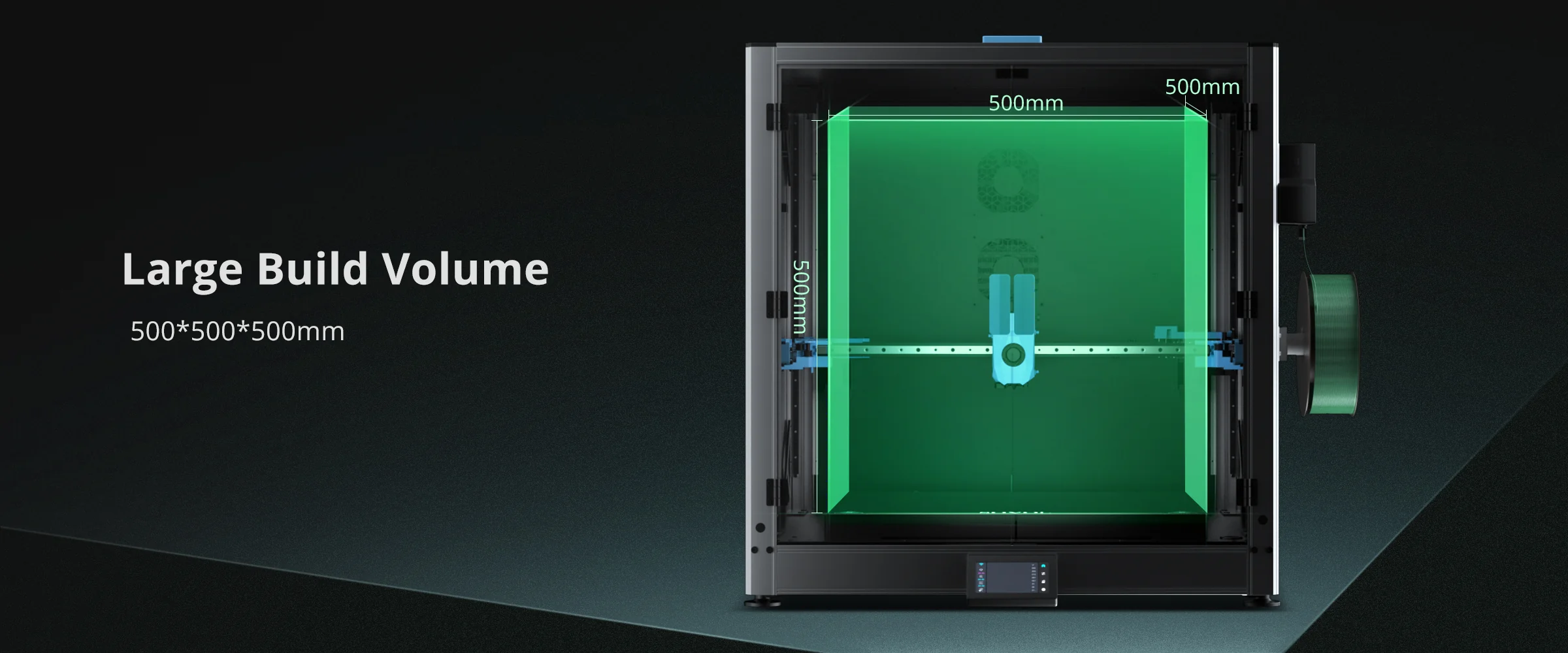

Large Build Volume
With up to 500×500×500mm³ of print space, SV08 Max empowers you to tackle industrial parts, full-scale prototypes, and oversized props — all in one go.

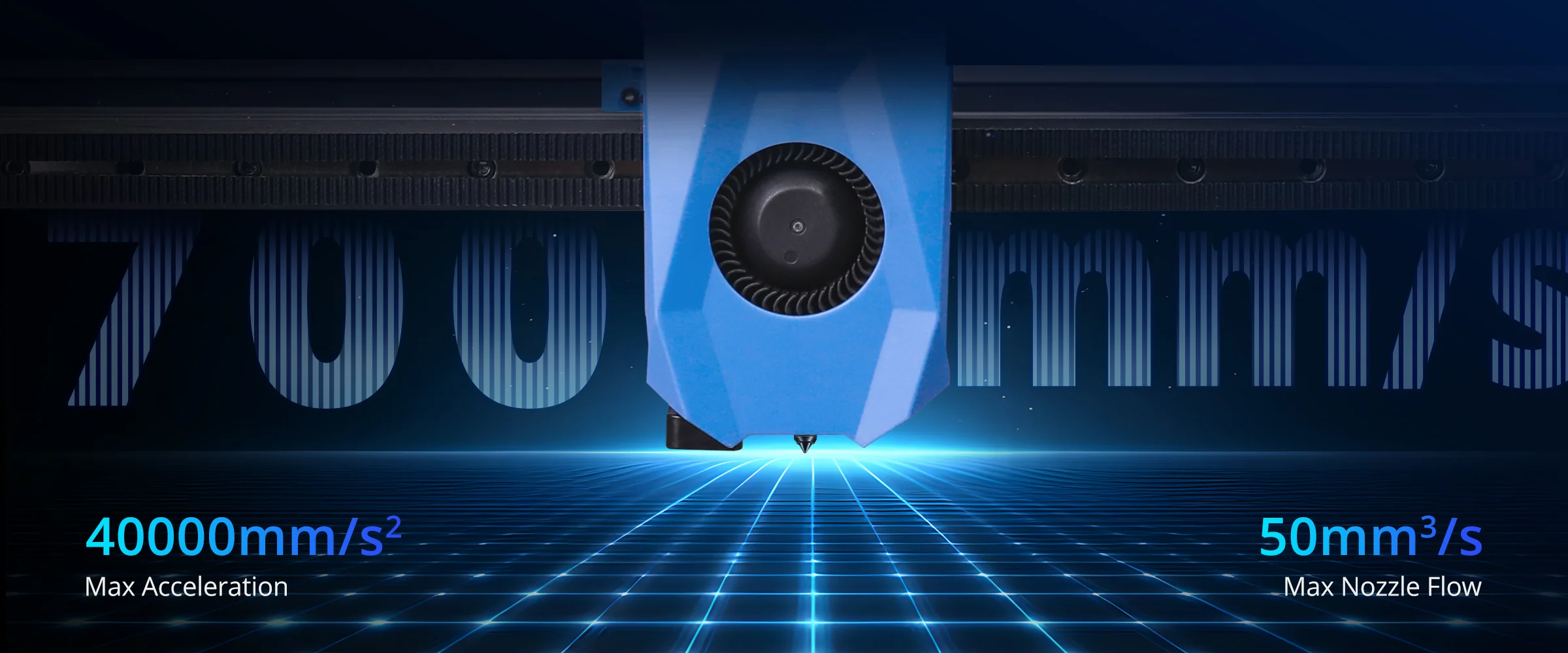

700mm/s
Go Big Without Slowing Down — SV08 Max redefines true large-format printing, slashing print times by up to 50%. From furniture and industrial parts to oversized collectibles, it brings blazing-fast performance with 40,000 mm/s² acceleration and a powerful 50mm³/s high-flow nozzle. Less waiting, more creating.

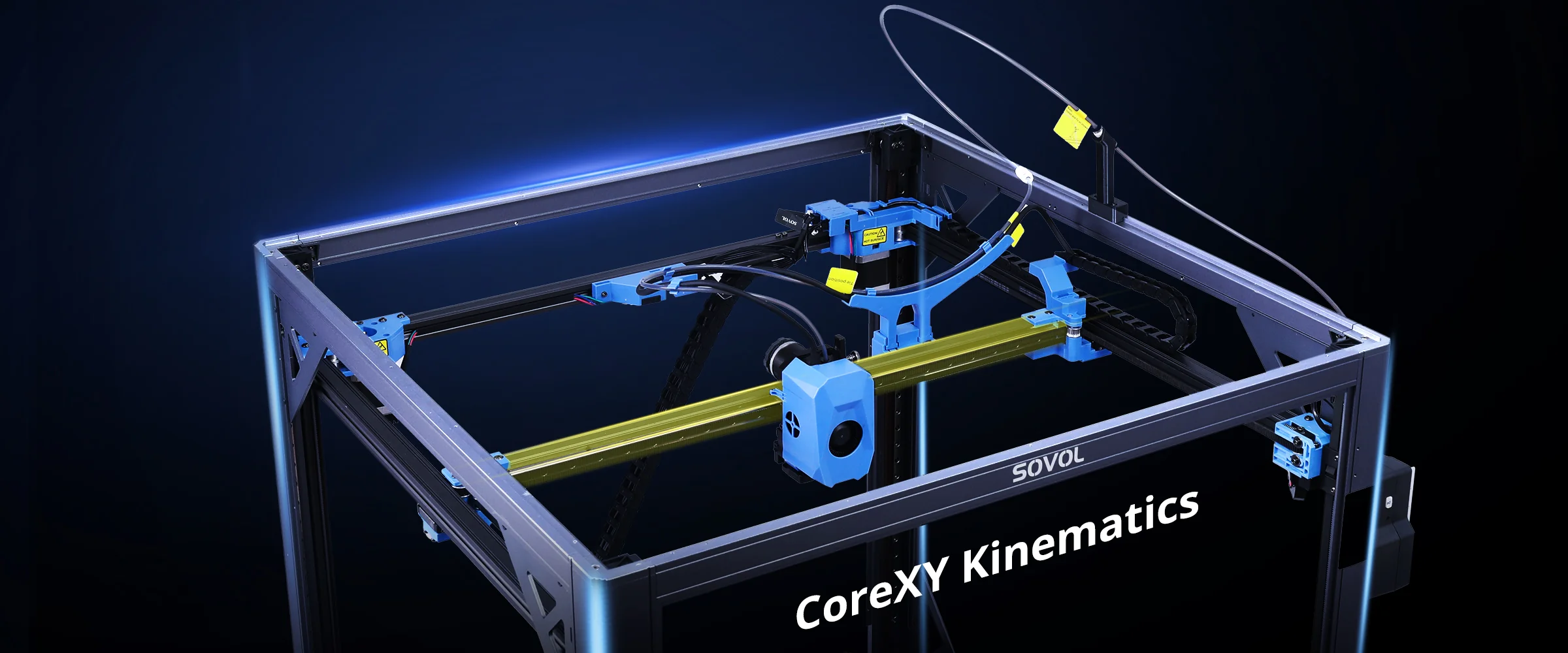

CoreXY Kinematics
With its compact design, minimal moving mass, and optimized motion path, the CoreXY system enables faster acceleration, reduced vibration, and unmatched print precision. Experience smoother, high-speed printing; perfect for large, complex models.

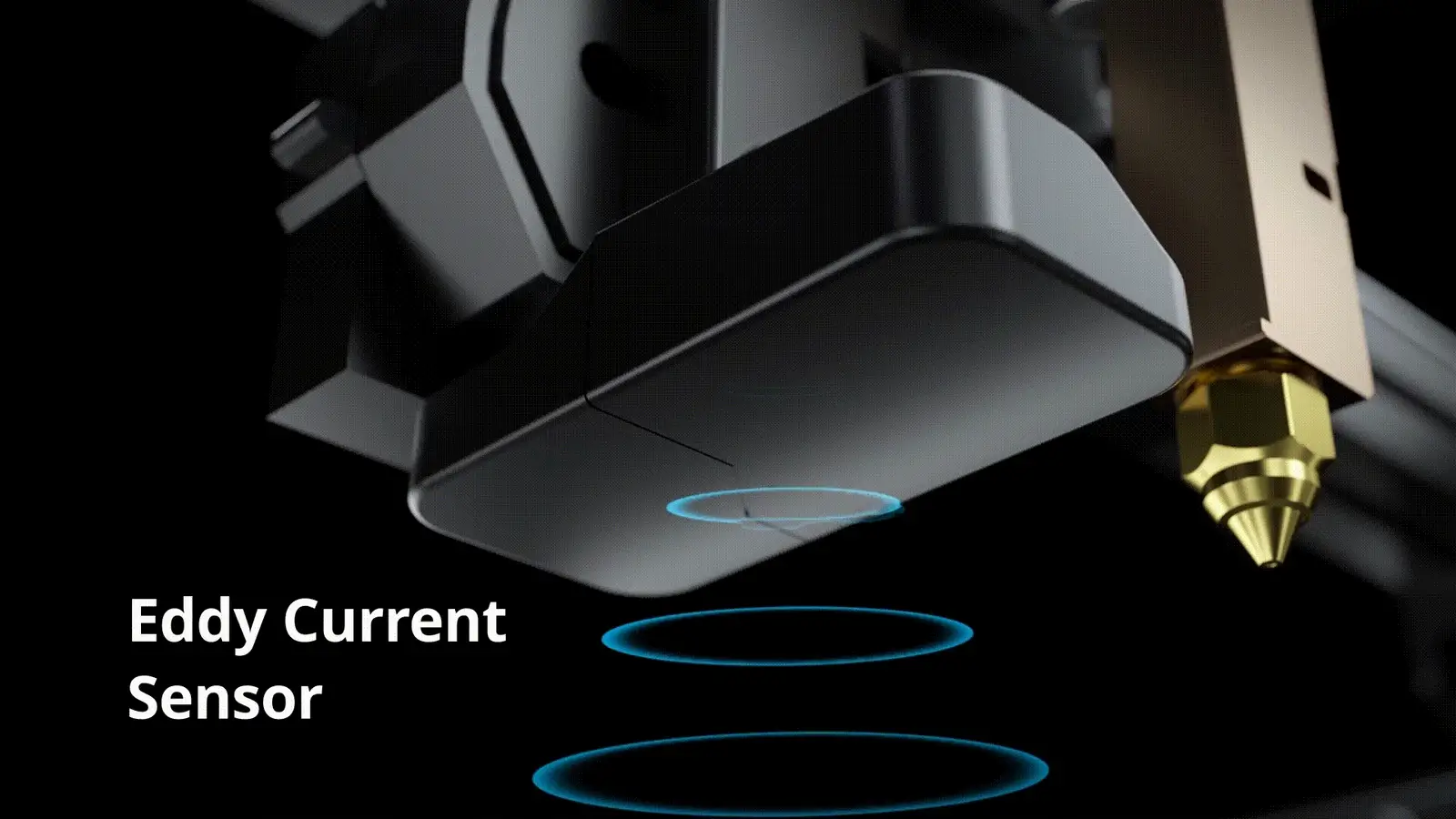

Eddy Current Sensor
Advanced Eddy Current Scanning system that delivers high-speed, contactless bed leveling with exceptional accuracy. It detects even the smallest surface deviations to ensure a perfectly leveled bed before every print.

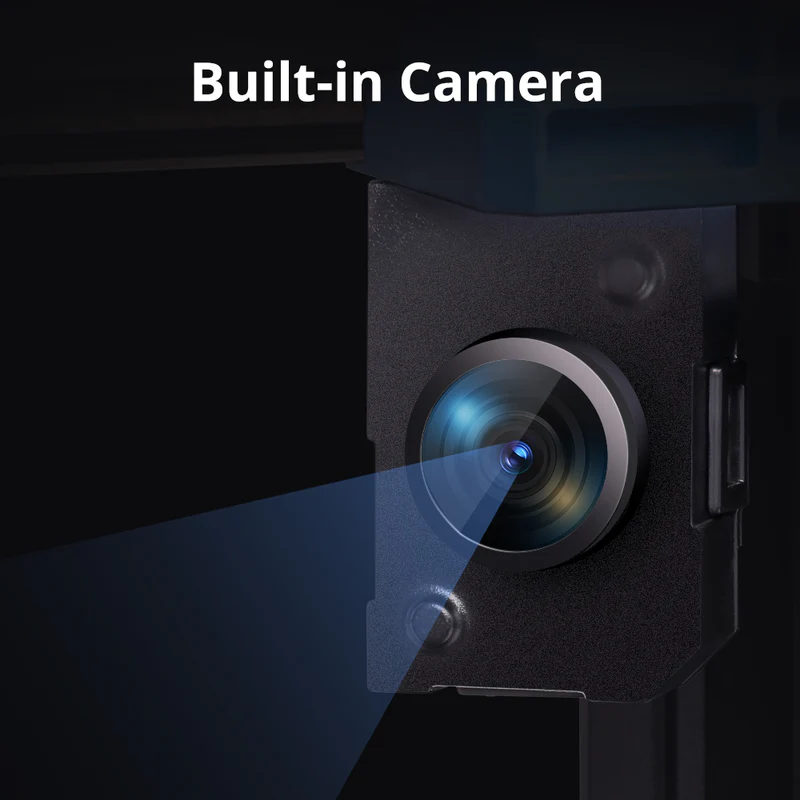

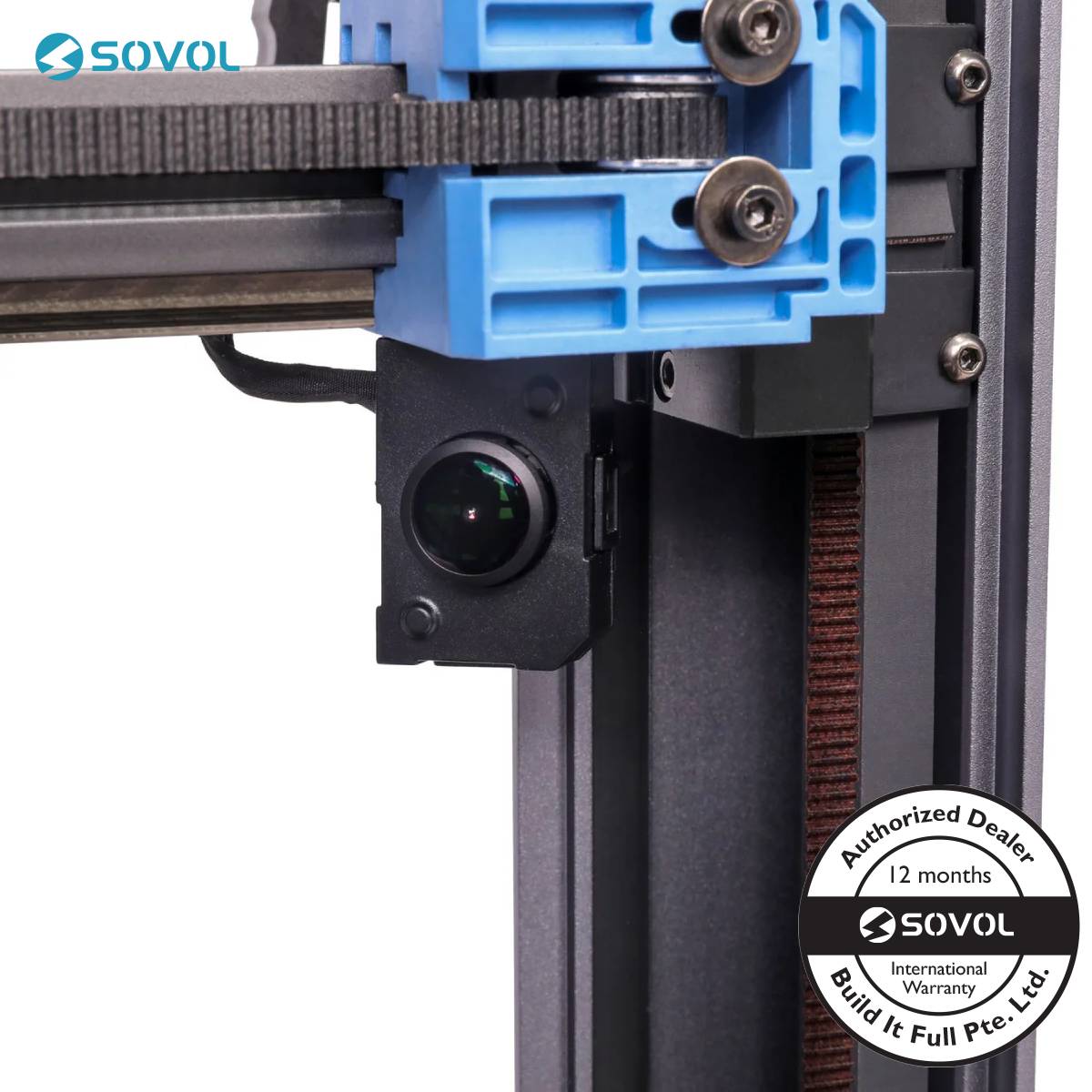

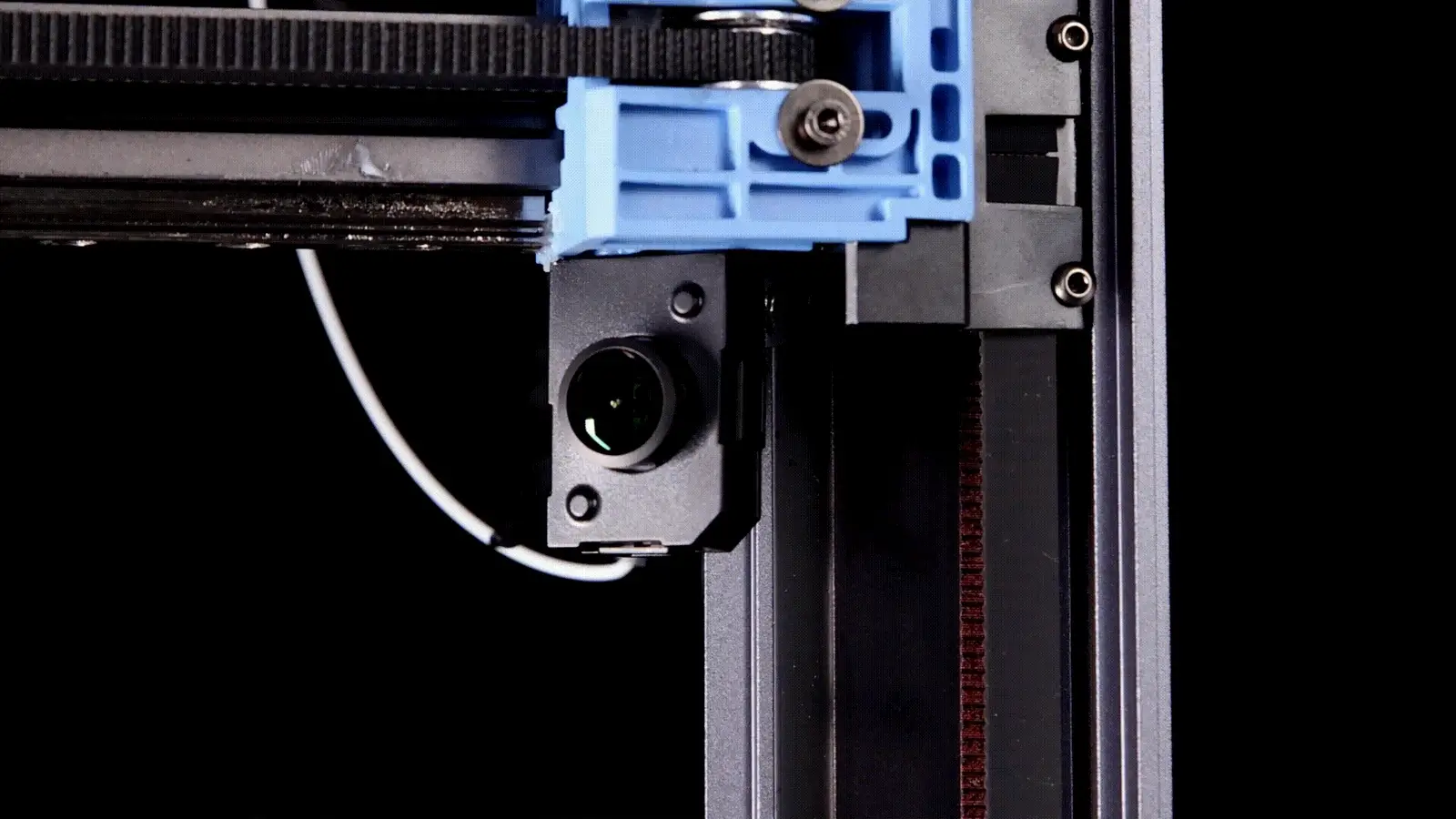

Camera & Remote Monitoring
SV08 Max comes equipped with a built-in 1280×720 HD camera, enabling seamless remote monitoring, time-lapse recording, and integration with Obico for advanced cloud-based control and intelligent print failure detection.

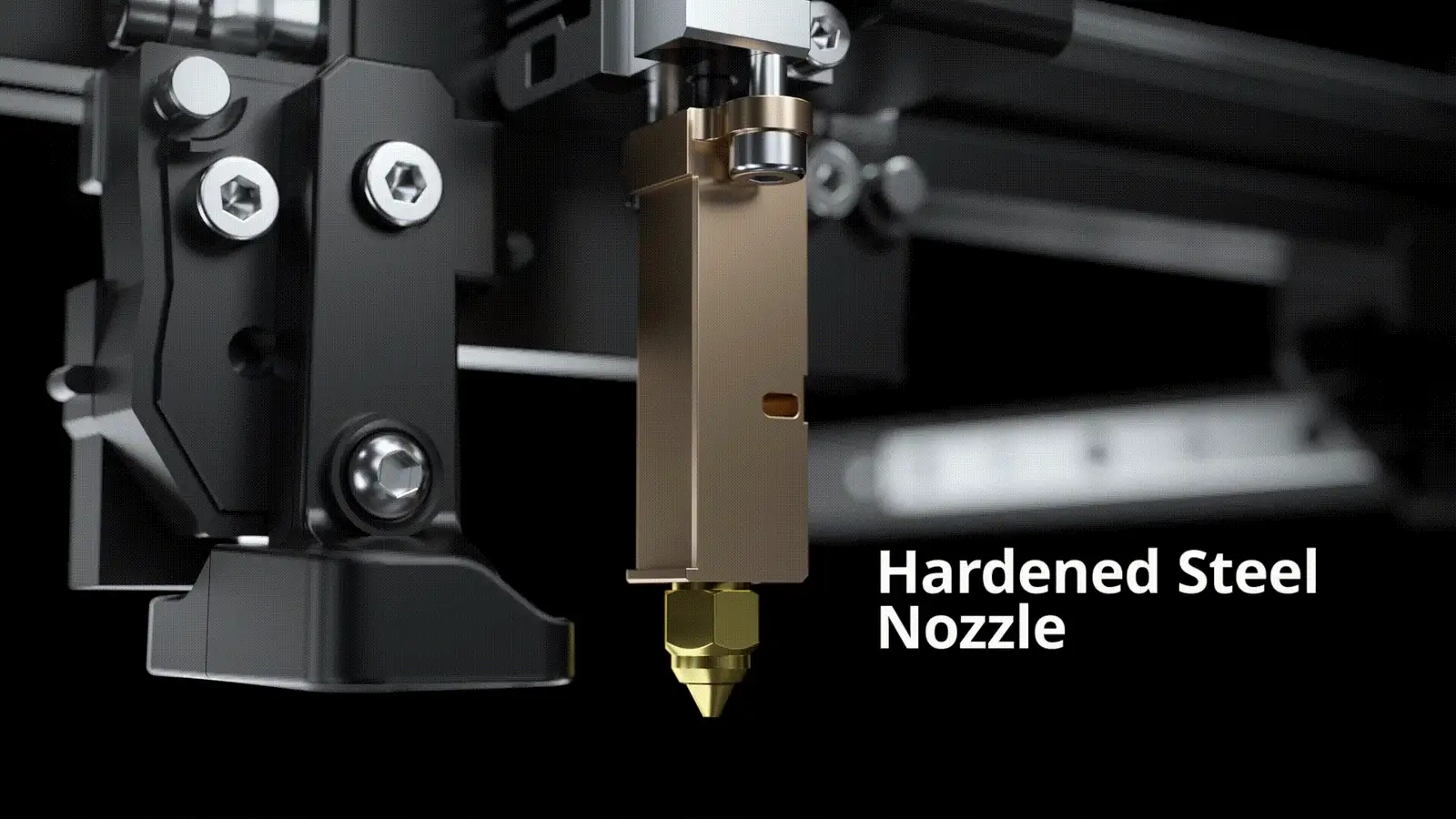

High-Temp Nozzle
The hotend supports a maximum temperature of 300°C and comes with 2 standard 0.4mm nozzles. Optional nozzle sizes include 0.4mm, 0.6mm, and 0.8mm (sold separately).

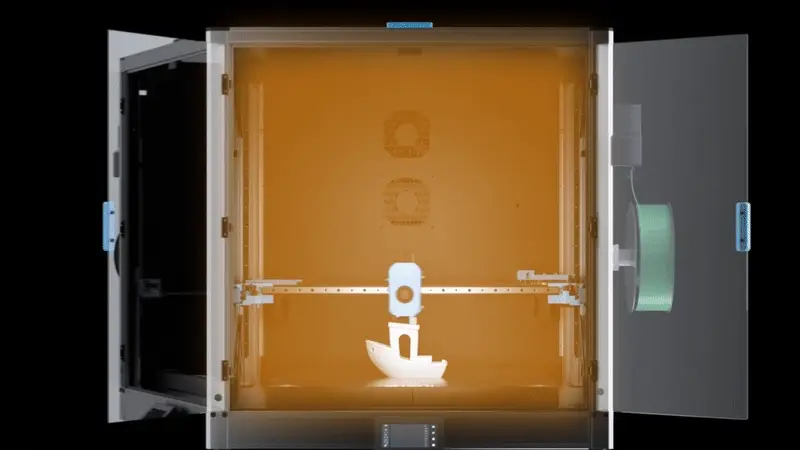

Optional Heated Chamber
SV08 Max is designed with a reserved interface for a Heated Chamber module, allowing users to upgrade their printer for high-temperature filament compatibility in the future. The heating module needs to be purchased separately.

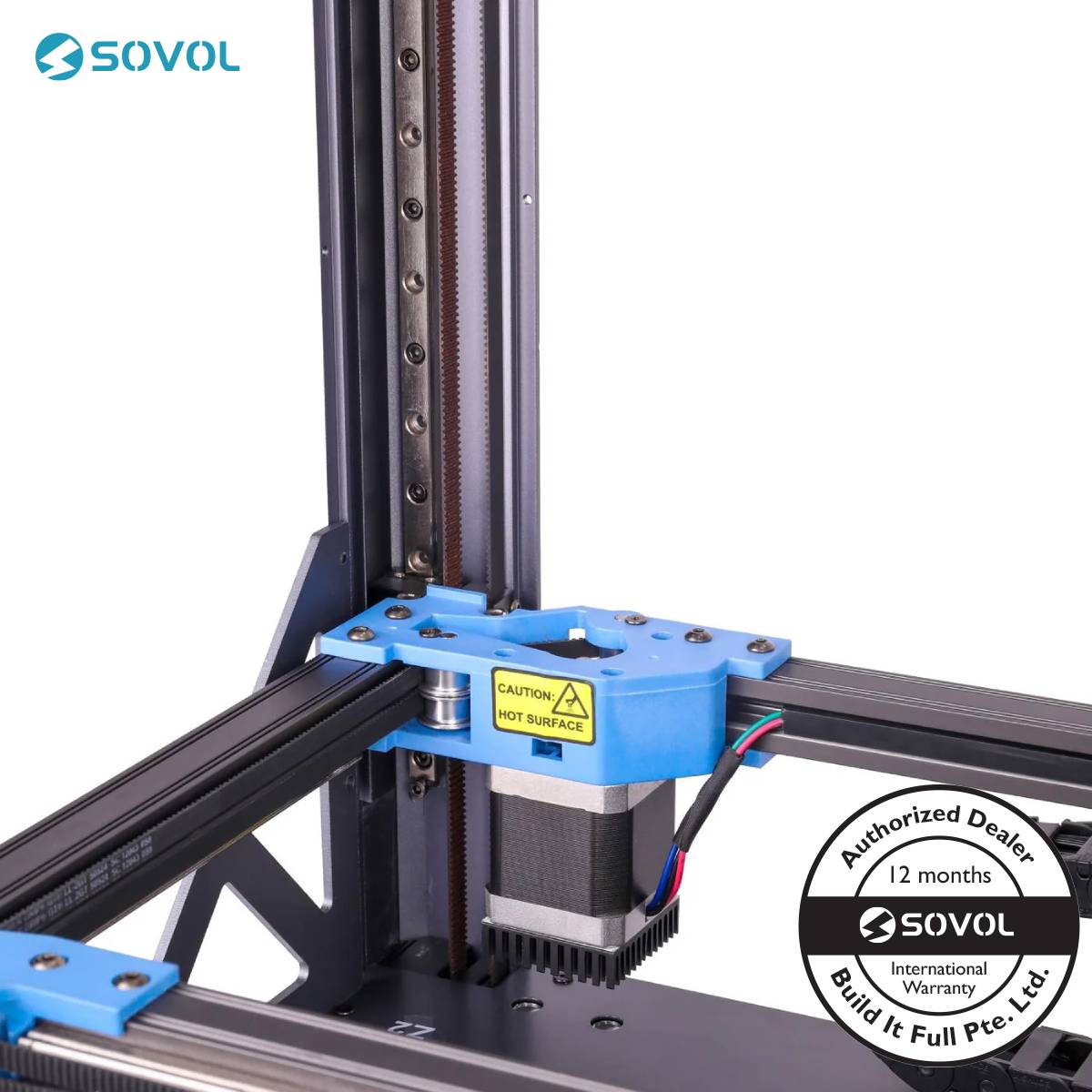

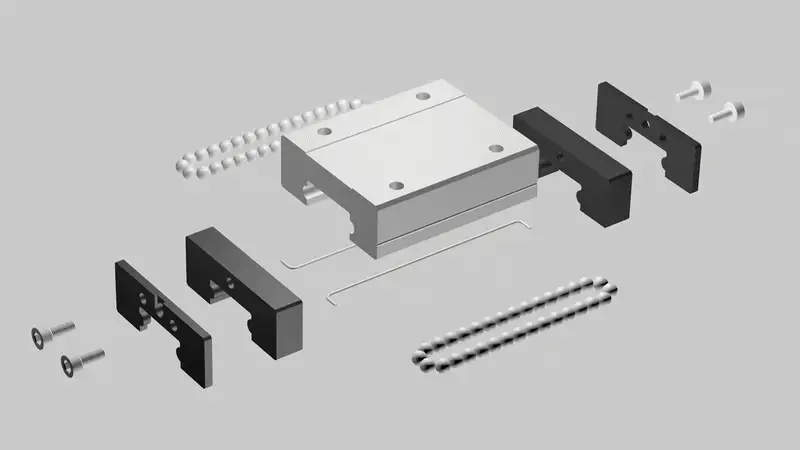

Industrial Grade Linear Rails
Industrial Grade Linear rails ensure smoother motion and superior control, enhancing print quality and reliability by minimizing artifacts. With greater rigidity and corrosion resistance, they offer extended durability for long-term performance.
For AII Your Needs
Perfectly handling a wider range of advanced and challenging filaments, such as PLA/TPU/PETG/ABS/ASA/PA/PC/PLA-CF/PETG-CF/HP-PLA, catering to more applications and diverse printing needs.

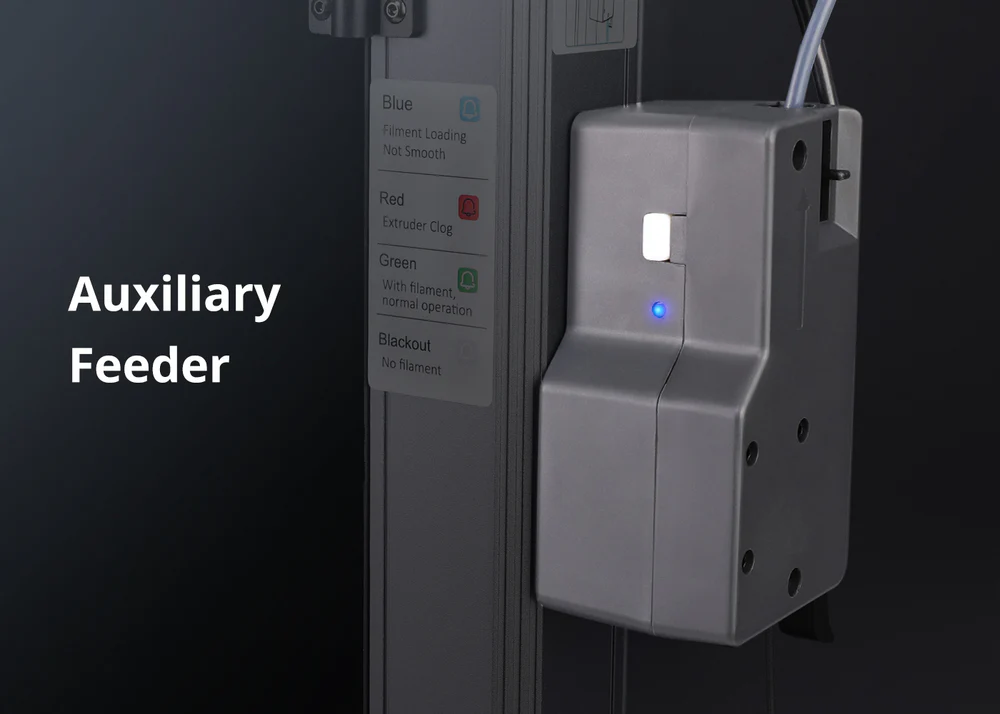

Auxiliary Feeder
The Smart Auxiliary Feeder System not only assists with smooth filament feeding, but also features tangle detection and clog detection to ensure uninterrupted printing. It actively monitors filament flow and prevents issues before they affect your print.

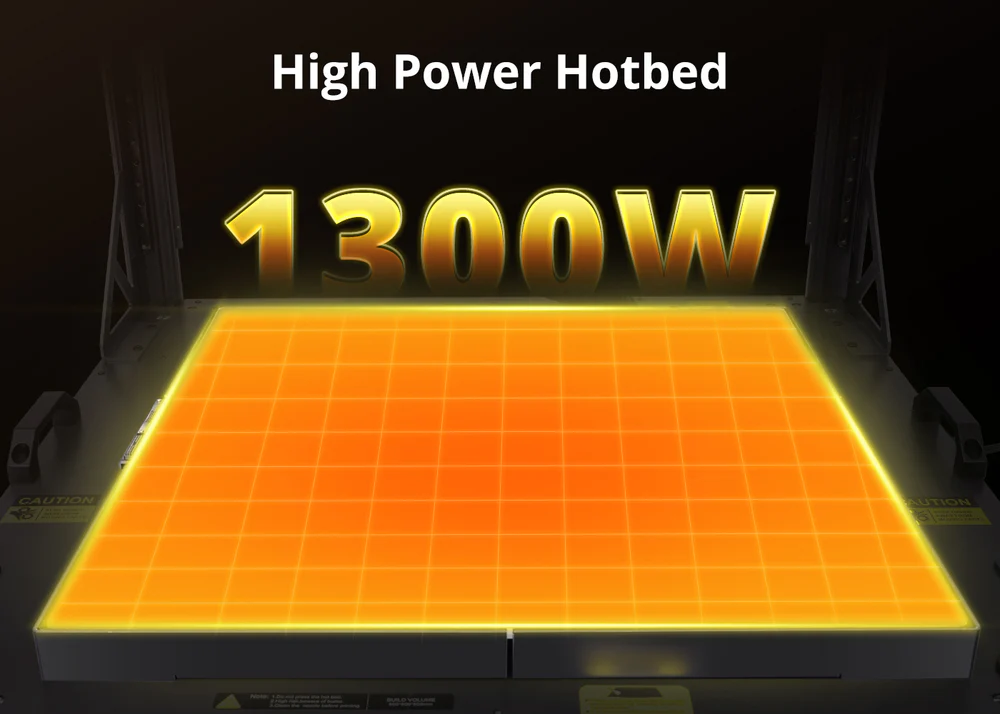

Thickened Hotbed
Equipped with a 8mm thick aluminum bed and 1300W of power, the SV08 Max’s hotbed delivers rapid and even heating across the entire surface. The reinforced structure minimizes warping, ensuring consistent adhesion and reliable prints, even on large models.
Perfect First Layer
By utilizing eddy current scanning and pressure-sensing touch points for automatic bed calibration, achieving a perfect first layer becomes effortless, requiring no action on your part.​
Product specification
| Build Volume(W*D*H) | 500×500×500mm³ | ||
| Max Printing Speed | 700mm/s | ||
| Max Acceleration | 40000mm/s² | ||
| Max Flow Rate | 50mm³/s | ||
| Nozzle Temperature | ≤300℃ | ||
| Hotbed Temperature | ≤100℃ | ||
| RAM | 1GB (512MB + 512MB) | ||
| Storage | 8GB EMMC | ||
| Filament Runout Detection | Yes | ||
| Power Loss Resume Printing | Yes | ||
| Filament Tangle / Clog Detection | Yes | ||
| Auxiliary Feeding | Yes | ||
| Slicer | Orcaslicer | ||
| Heating Method | Ceramic Heating | ||
| Nozzle | Standard: 2 × 0.4mm Optional: 0.4 / 0.6 / 0.8mm |
||
| Control System | Klipper | ||

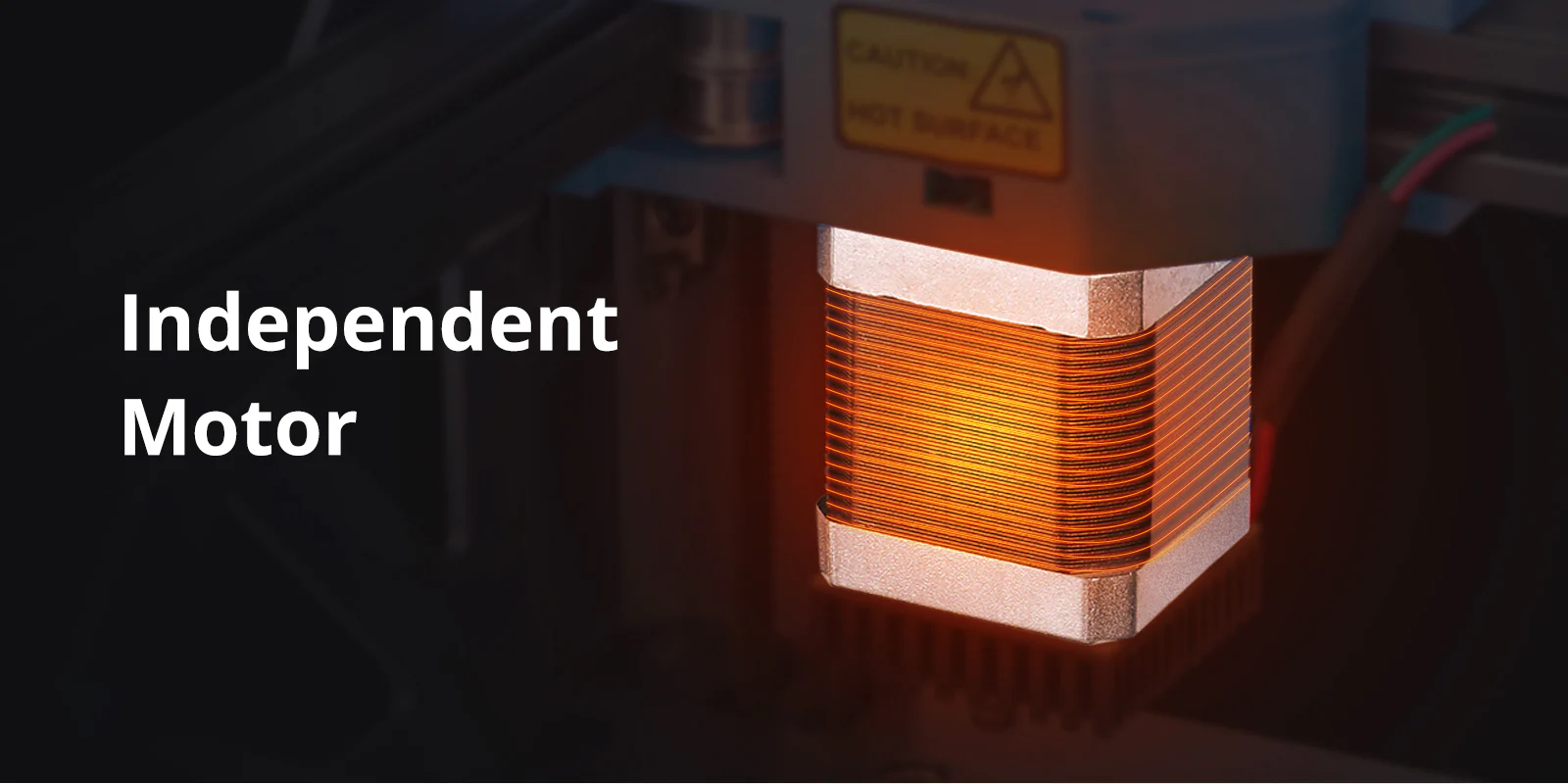

| Motors | Z-axis: TMC2209×4 A-axis: TMC5160×1 B-axis: TMC5160×1 |
||
| Communication | CAN bus | ||

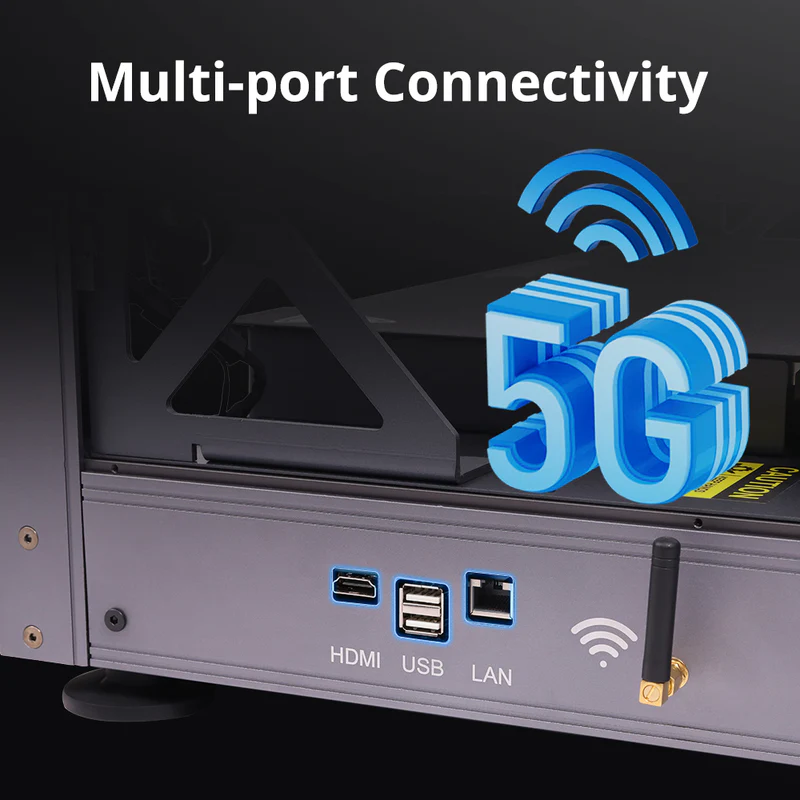

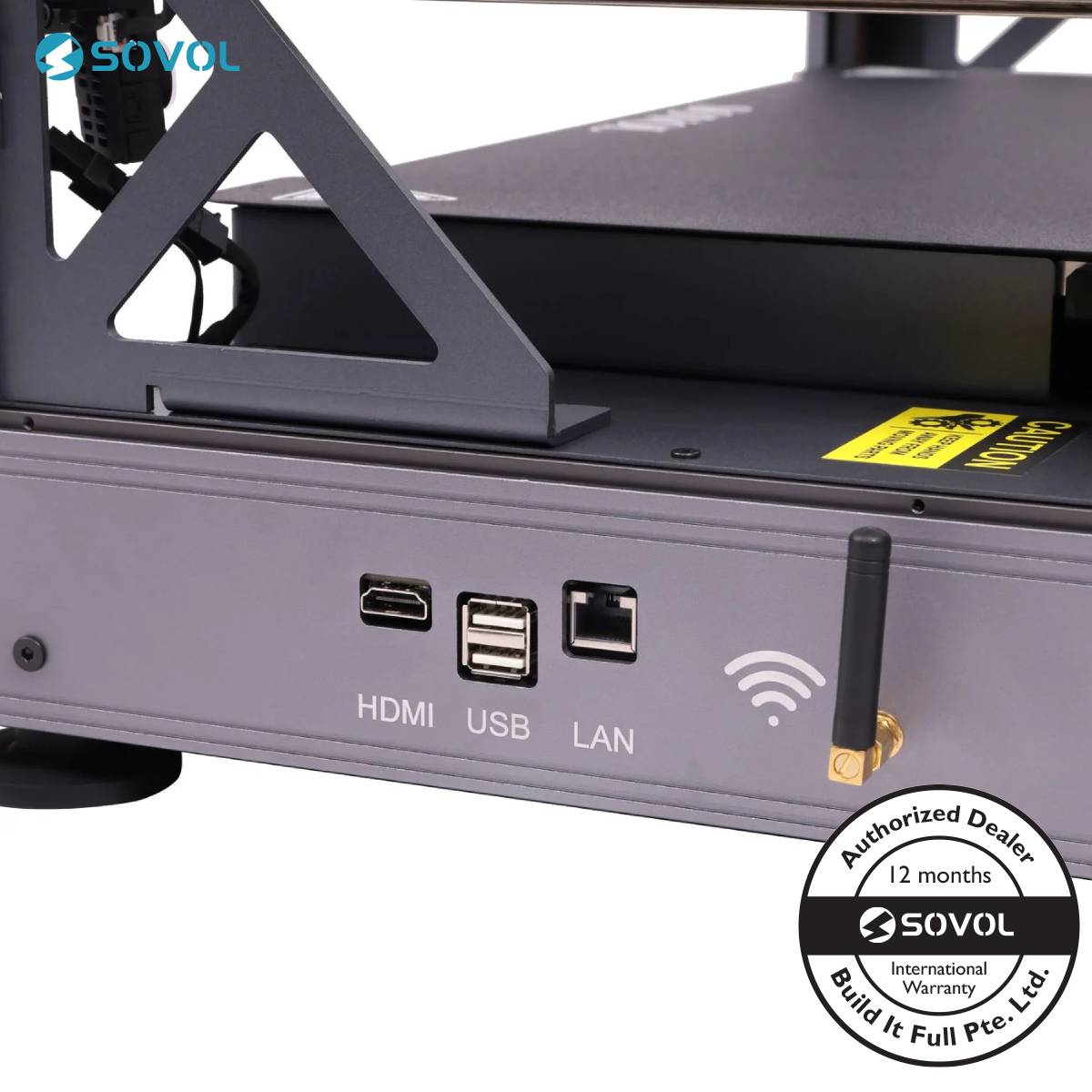

| Connections | USB, Wi-Fi (2.4G/5G), HDMI, Ethernet | ||
| Filament Diameter | 1.75mm | ||
| Printer Size | 700×710×750mm(excluding spool holder) | ||
| Printer Package | 810×820×360mm | ||
| Enclosure Kit Package | 775×728×155mm |
Additional information
| Weight | 21.5 kg |
|---|---|
| Dimensions | 61 × 60 × 32 cm |
| Print Technology | FDM/FFF |
| Extruder Quantity | Single Extruder |
| Nozzle Temperature | Upto 300c, Ceramic Heating |
| Nozzle Diameter | 0.4mm |
| Build Platform / Bed Temperature | PEI Spring Steel Magnetic Build Plate, Upto 100° C |
| Printing Speed | ≤ 700 mm/s |
| Acceleration | ≤40000mm²/s |
| Flow Rate | ≤50mm³/s |
| RAM | 1GB (512MB + 512MB) |
| Storage | 8GB EMMC |
| Printing Material | TPU, ABS (with enclosure panels), PLA, PETG |
| Filament-diameter | 1.75mm |
| Filament Runout Sensor | Yes |
| Filament Tangle Clog Detect | Yes |
| Resume Printing | Yes |
| Auxiliary Feeding | Yes |
| Motor | A-axis: TMC5160×1, B-axis: TMC5160×1, Z-axis: TMC2209×4 |
| Auto Bed Leveling | Inductive sensor + pressure sensor |
| Build Volume | 350 x 350 x 345mm |
| Net / Gross Weight | 17.7kg / 21.5kg |
| Machine Dimension | 700 × 710 × 750mm (excluding spool holder) |
| Shipping Box Size | 810 × 820 × 360mm |
| Enclosure Kit Box Size | 775 × 728 × 155mm |
| Connectivity | Ethernet Port, HDMI, USB, Wifi |
| Software | Orca Slicer |
| Option | SV08 Max, SV08 Max with Enclosure |
