Bambu Lab AMS Mainboard (V2)
$125.00
Out of stock
Specification
| Low Temp (≤70℃) | High Temp (≤90℃) | |
| Materials | ABS | ABS+PC |
| Packing Size | 200 × 200 × 67 mm | 200 × 200 × 67 mm |
| Weight | 250g | 250g |
| Color | White | Black |
| Filament Compatibility | PLA, PETG | PLA, PETG, ABS, ASA, PA6-GF, ABS-GF, PAHT-CF, PET-CF, PA6-CF, PC, TPU |
Instructions for Printed Spool

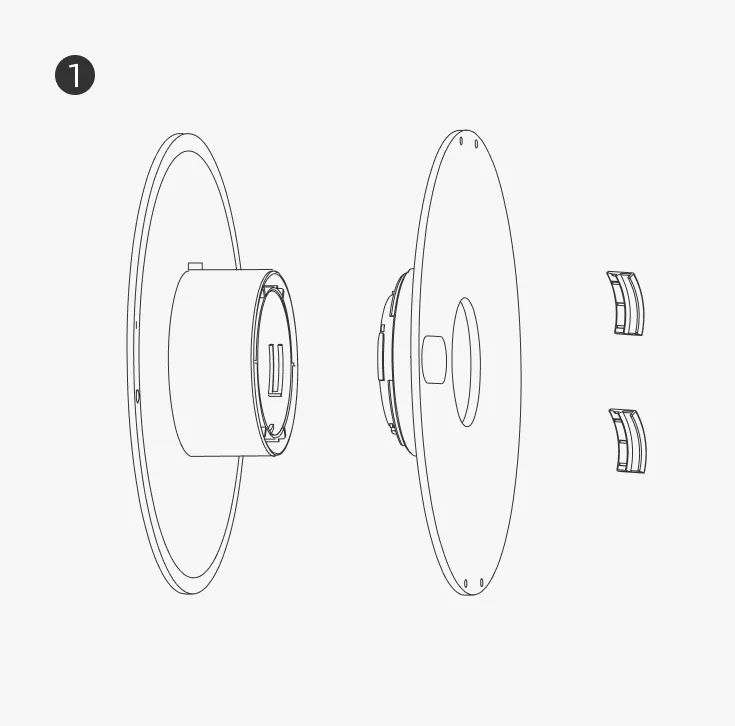

When you’re finished printing, you will have a wide piece (1x), narrow piece (1x), spacing shim (2x).

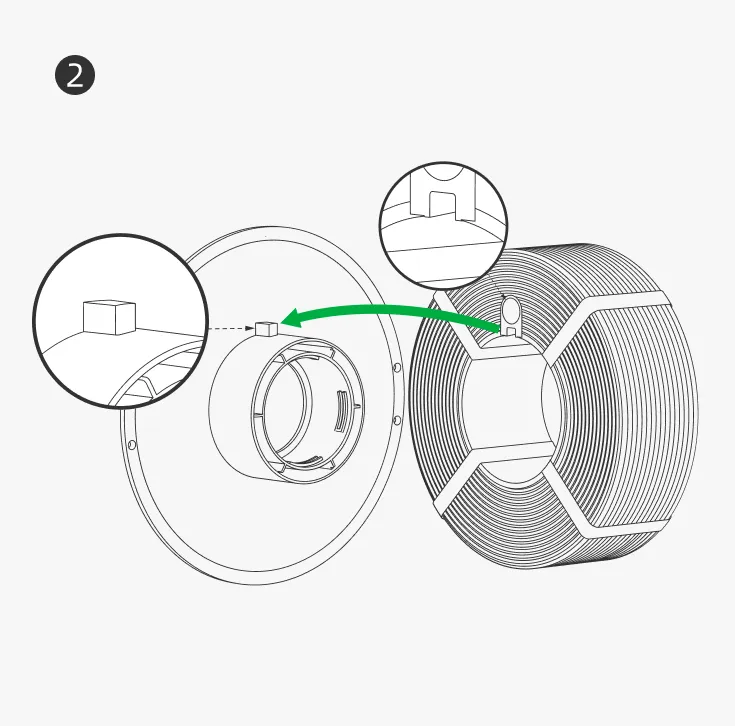

Find the locator (a tiny block on the wide piece). Align it with the notch on the inner ring of the filament roll. Insert the wide piece into the filament roll.

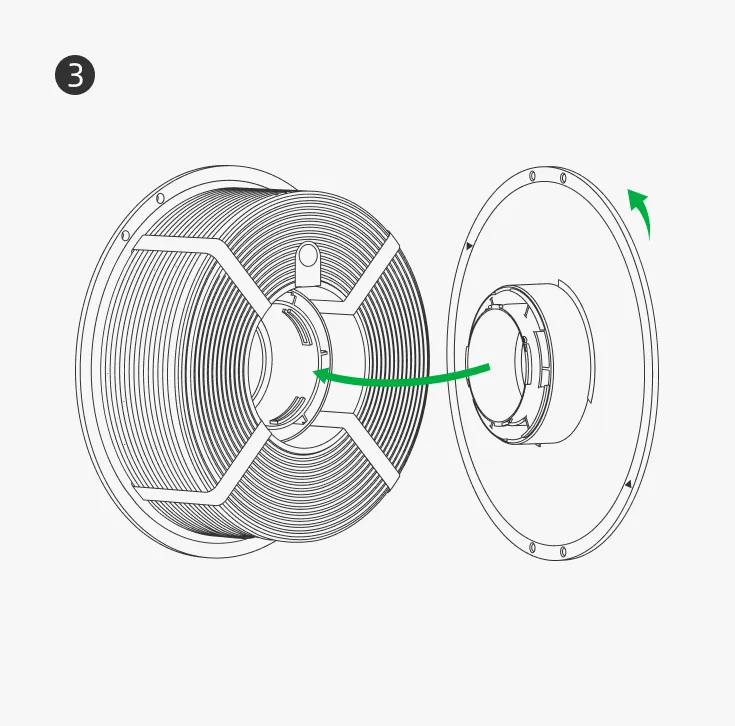

Step 3.1. Insert the narrow piece and align the groove of each piece inside of the spool until it is pushed firmly into the wide piece.
Step 3.2. Once it is pushed firmly into the wide piece, rotate the narrow piece clockwise until it slides into place and you hear it lock.

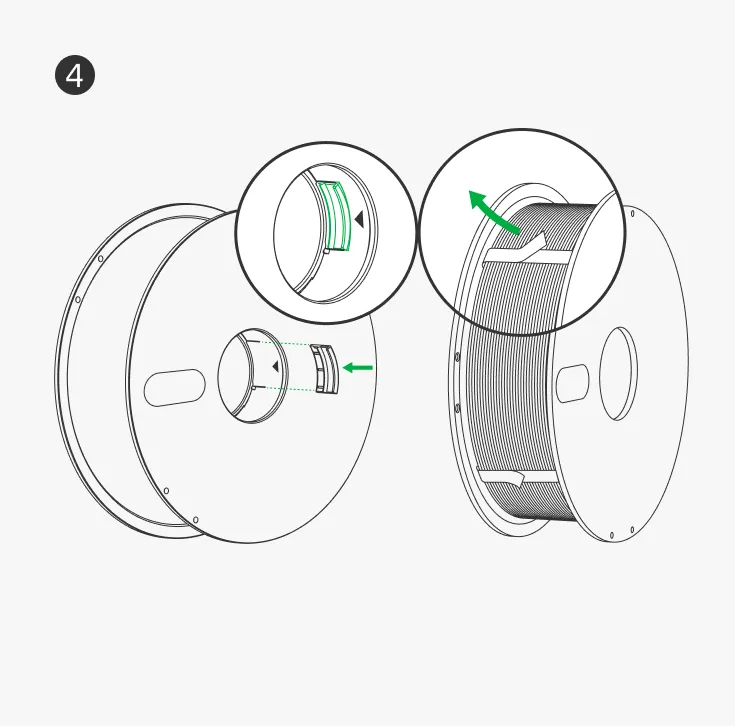

Step 4.1. Make sure the spacing shim is installed inside the spool (under the triangle).
Step 4.2. Tear apart and pull out the plastic strips.
Overview

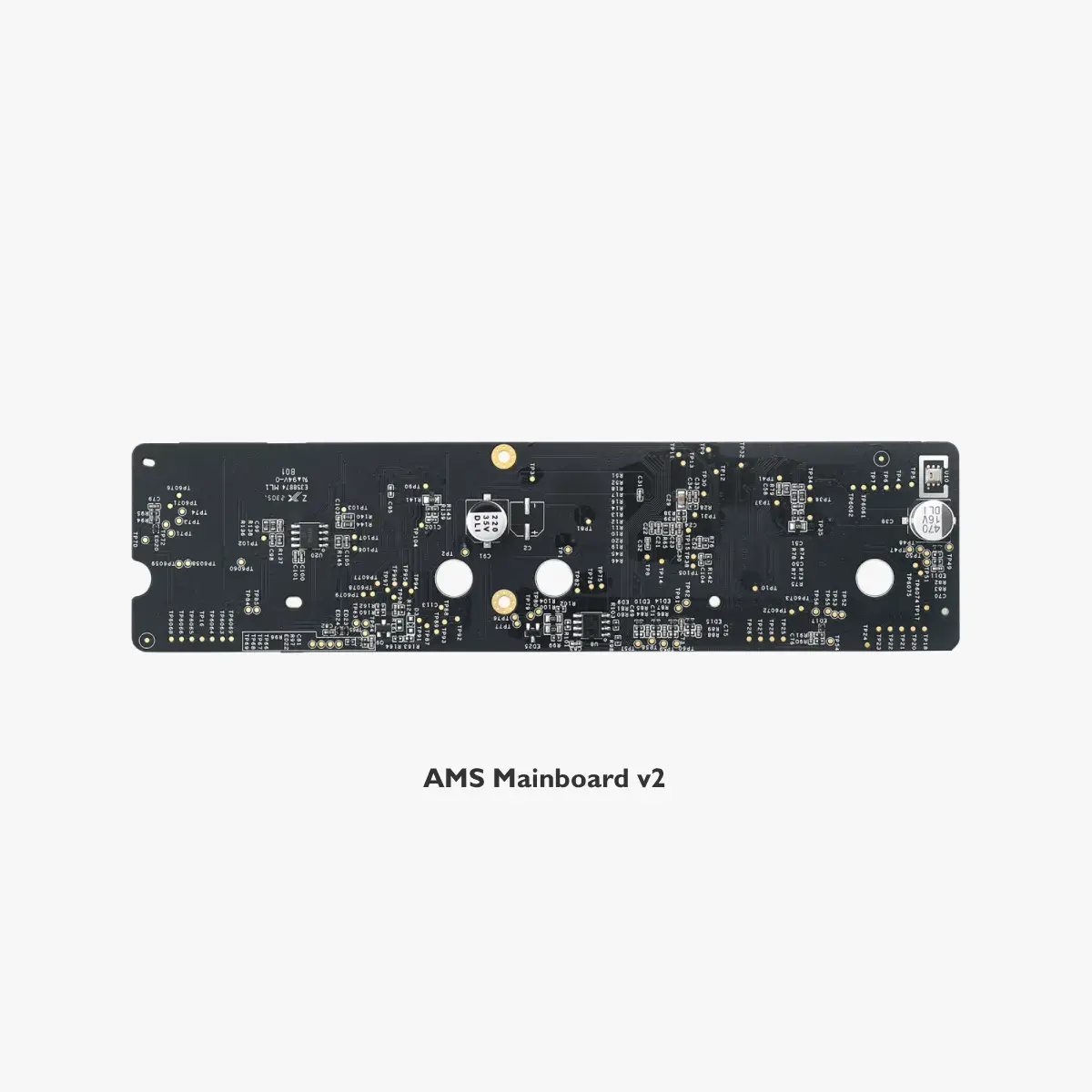

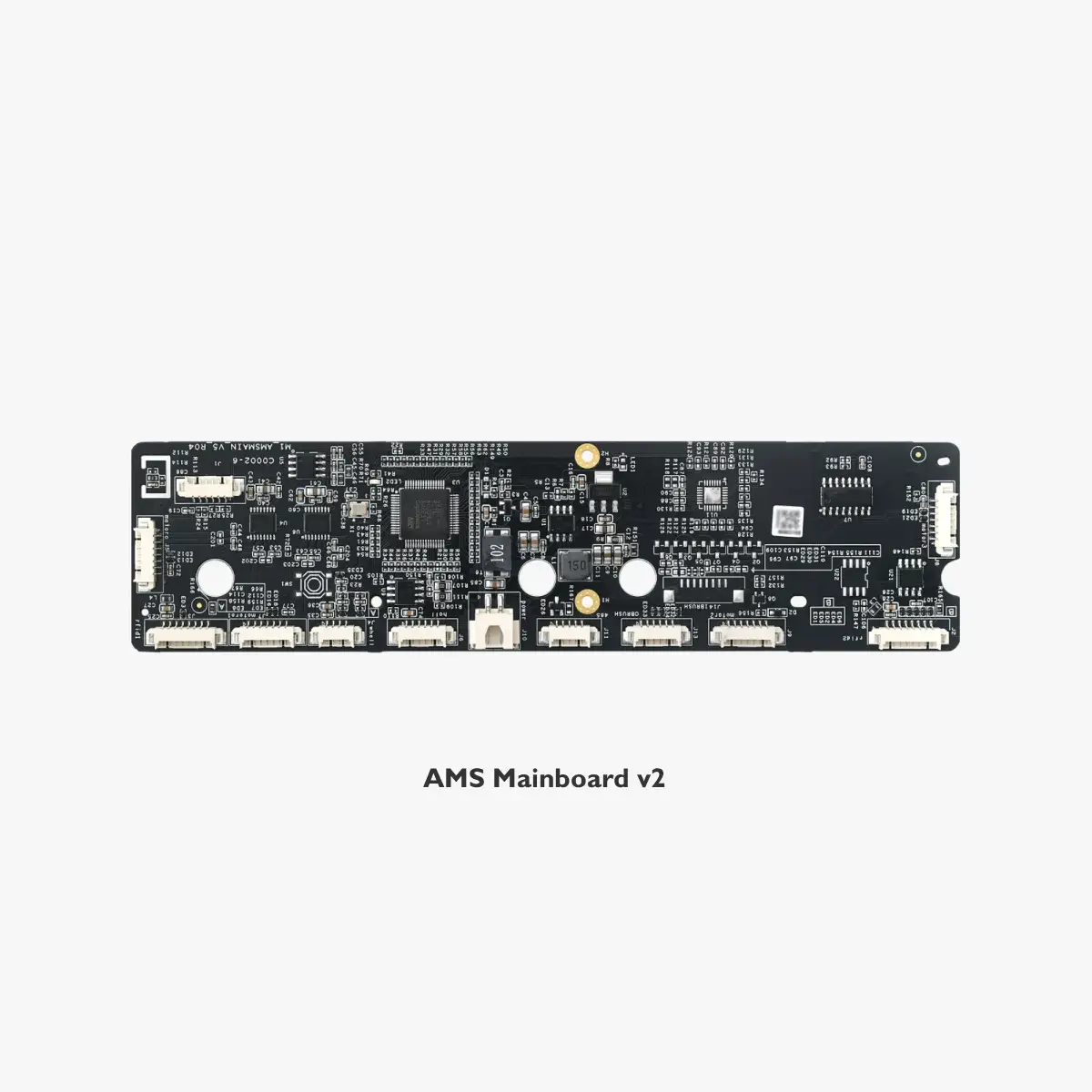

The AMS Mainboard is the center circuit board of the AMS. It includes a series of connectors through which various functional components are connected by cables.
Installation
Learn more about the replacement of the AMS Mainboard (V2) on Bambu Lab Wiki.
In the Box
- AMS Mainboard (V2)*1
Compatibility
- Works with Bambu Lab AMS
Additional information
| Weight | 0.35 kg |
|---|---|
| Dimensions | 21 × 21 × 7 cm |
