ELEGOO Centauri Carbon
Original price was: $620.00.$580.00Current price is: $580.00.
- Print Right Out of the Box
- Full-Auto Calibration
- CoreXY with 500 mm/s Velocity
- 20,000 mm/s² Acceleration
- Unleash Creativity with Every Filament
- Chamber Camera Acts as Your Eyes
- Build Volume 256 × 256 × 256 mm
Print Right Out of the Box
Ease-of-Use
Redefining Material Versatility
Designed for advanced materials, Centauri Carbon is equipped with a 320 °C hardened nozzle and superior cooling within a fully enclosed chamber. It specializes in carbon fiber reinforced filament, allowing you to create strong, lightweight and heat-resistant parts, ideal for aerospace, automotive, and athletic applications.
Built for High-Speed
Centauri Carbon redefines speed with its advanced CoreXY motion system, reaching up to 500 mm/s and 20,000 mm/s² acceleration. Its 32 mm³/s flow rate enables rapid creation of larger, intricate designs, while the high-power heated bed ensures quick heat-up for instant printing.
500mm/s |
20,000mm/s² |
32mm³/s |
| Velocity | Acceleration | Flow rate |
Integrated Die-Cast
Design
We spent extra to bring you the most reliable integrated die-cast aluminum construction, ensuring superior stability and reduced vibrations for high-speed printing. This robust design allows you to achieve faster prints without compromising accuracy or quality.
Feel the Smoothness
Achieve a perfect first layer with smooth surfaces and stunning details. Centauri Carbon’s automatic vibration compensation and pressure advance ensures extra smoothness, bringing you lightning-fast speed without ringing or ghosting in prints.
Chamber Camera Keeps You in Total Control
The chamber camera offers real-time monitoring for quick adjustments, minimizing waste and enhancing reliability. The built-in LED light ensures you never miss a moment, while the time-lapse feature makes sharing your creative process a breeze.
Dual-Sided
Flexible Plate
The upgraded dual-sided plate features a new PLA Specific Surface with excellent adhesion and minimal warping, ensuring perfect PLA printing even at lower heatbed temperatures.
Even More Carefree
Fan
self-check
Power Loss Recovery
Auto Filament Unloading
Filament Run-Out Detector
Transparent Glass Door
Stay engaged with your printing process in real-time through the sturdy tempered glass door and top cover of the enclosure.
Semi-Automatic Belt Tensioner
Count on smooth printing with the semi-automatic belt tensioner that effortlessly maintains optimal tension, reducing vibrations and ensuring unmatched accuracy.
Heatbed Nozzle Wiper & Filament Waste Bin
The heatbed nozzle wiper keeps your nozzle residue-free before each use for flawless prints every time, while the filament waste bin[1] makes post-print cleanup quick and easy.
Advanced Cooling & Built-in Air Filter
Maximize your cooling efficiency with two additional high-performance fans – a powerful auxiliary part cooling fan & a chamber temperature regulator fan, complete with real-time self-checks for optimal performance. Its Nano mineral crystal filter absorbs harmful particles and odors, ensuring a fresh, safe printing environment.
Powerful and Speedy System
Achieve outstanding performance with Centauri Carbon’s advanced operation system, featuring seamless OTA upgrades, 8G ROM for ample storage, and fast dual-band Wi-Fi for reliable LAN transfers.
Right-Side Filament Holder Design
Located on the machine’s right side, the filament holder offers convenience for replacing and monitoring filament supply.
Wide Applications
 |
 |
|
Centauri Carbon |
Centauri |
Body |
|
|
Shell |
Enclosed (Metal & Glass) |
Open Frame |
Chassis |
Die-Cast Aluminum |
Die-Cast Aluminum |
Printing Specifications |
|
|
Max Printing Speed |
500 mm/s |
500 mm/s |
Max Acceleration |
20,000 mm/s² |
20,000 mm/s² |
Max Hotend Flow |
32 mm³/s |
32 mm³/s |
Printing Accuracy |
±0.1 mm |
±0.1 mm |
Layer Thickness |
0.1-0.4 mm (recommended 0.2 mm) |
0.1-0.4 mm (recommended 0.2 mm) |
Leveling Method |
Auto-Leveling |
Auto-Leveling |
Build Volume (W × D × H) |
256 × 256 × 256 mm | 256 × 256 × 256 mm |
Supported Filament |
Carbon/Glass Fiber ReinforcedFilaments/PLA/PETG/ABS/ASA/TPU/PET/PC/PA |
PLA/PETG/TPU/ABS/ASA |
Sensors |
|
|
Chamber Monitoring Camera |
Yes |
– |
Filament Run Out Sensor |
Yes |
Yes |
Power Loss Recovery |
Yes |
Yes |
Hardware |
|
|
Extruder |
Hardened Steel Dual-Gear Direct Extruder | Hardened Steel Dual-Gear Direct Extruder |
Nozzle |
0.4 mm Brass-Hardened Steel Nozzle (Included)
|
0.4 mm Brass-Hardened Steel Nozzle (Included)
|
Hot End |
All-Metal |
All-Metal |
Max Hot End Temperature |
320 °C |
320 °C |
Build Plate |
PLA Specific & Textured PEI Dual-Sided Plate |
PLA Specific & Textured PEI Dual-Sided Plate |
Max Heated Bed Temperature |
110 °C |
100 °C |
Filament Cutter |
Yes |
Yes |
Touch Screen |
4.3-inch Capacitive Touch Screen |
4.3-inch Capacitive Touch Screen |
Cooling & Filtration |
|
|
Fan |
Part Cooling Fan
|
Part Cooling Fan
|
Air Filter |
Activated Carbon Filter |
– |
System |
|
|
Connectivity |
USB & Wi-Fi |
USB & Wi-Fi |
OTA Firmware Upgrade |
Yes |
Yes |
Language |
English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
English, French, German, Russian, Italian, Spanish, Japanese, Chinese |
Slicing Software |
ELEGOO Slicer (Recommended), Orca, Cura |
ELEGOO Slicer (Recommended), Orca, Cura |
Input Format |
STL, OBJ, 3MF, STP |
STL, OBJ, 3MF, STP |
Output Format |
Gcode |
Gcode |
Size & Weight |
|
|
Printer Dimensions |
398 × 404 × 490 mm |
398 × 404 × 490 mm |
Net Weight |
17.5 kg |
14 kg |
Gross Weight |
21 kg |
17 kg |
Power Requirements |
|
|
Input Voltage |
100-240 VAC, 50/60 Hz |
100-240 VAC, 50/60 Hz |
Max Power |
1100W@220V, 350W@110V |
1100W@220V, 350W@110V |

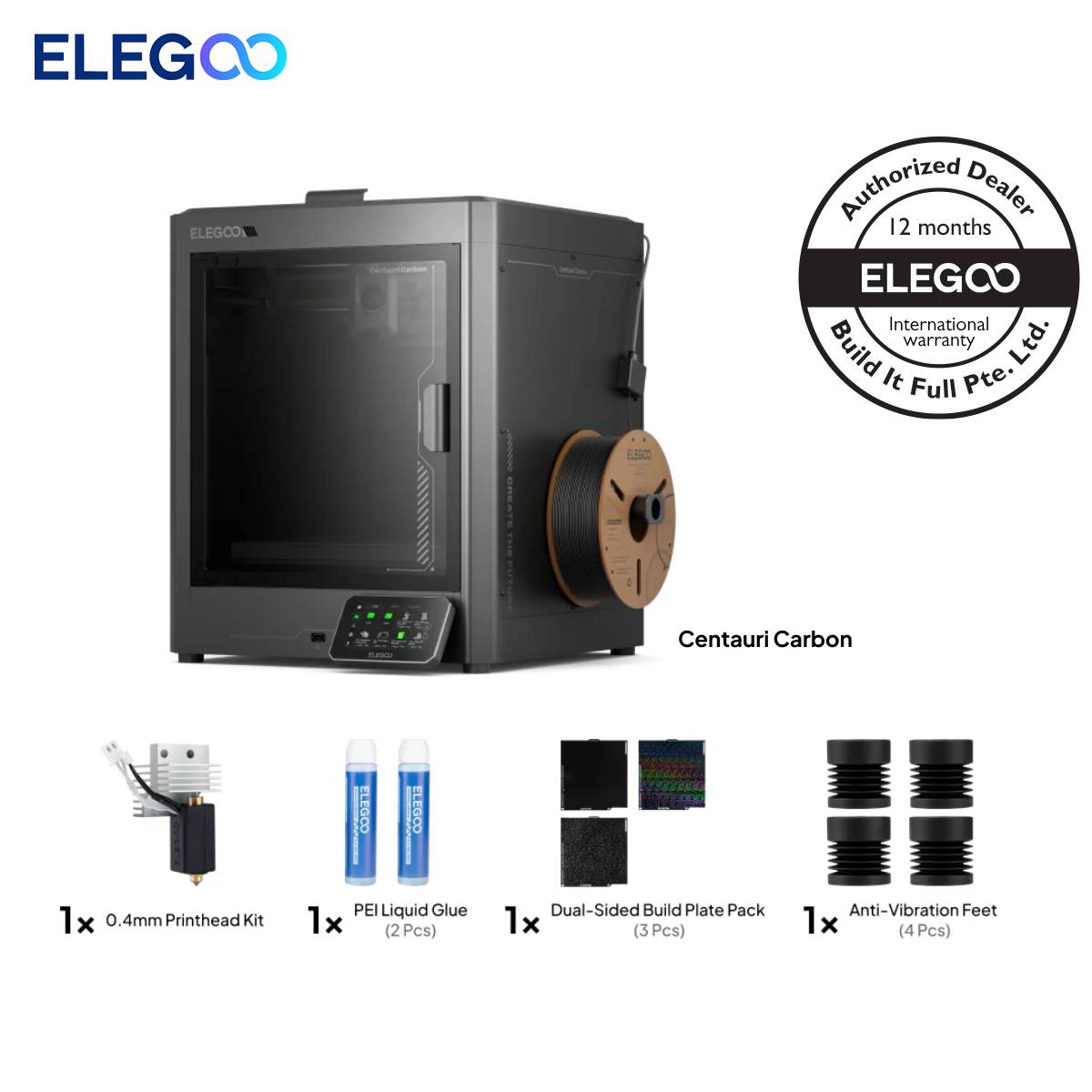

What’s In The Box
Centauri Carbon
User Manual
Spool Holder
Adapter
Touch Screen
Filament Sample
Unclogging Pin Tool
Allen Wrench
Screwdriver
Spare Heatbed
Nozzle Wiper
USB Drive
Screw
Scraper Blade
Additional information
| Weight | 21 kg |
|---|---|
| Dimensions | 49 × 48 × 57 cm |
| Nozzle Diameter | 0.4mm |
| Nozzle Material | Harderned Steel |
| Nozzle Temperature | Upto 320 °C |
| Hotend | All-Metal |
| Auto Bed Leveling | Yes |
| Extruder Type | Hardened Steel Dual-Gear Direct Extruder |
| Build Platform / Bed Temperature | PLA Specific & Textured PEI Dual-Sided Plate, Upto 110° C |
| Build Volume | 256 × 256 × 256 mm |
| Connectivity | USB, Wifi |
| Print Technology | FDM/FFF |
| Software | Cura, ELEGOO Slicer (Recommended), Orca Slicer |
| Printing Speed | MAX 500 mm/s |
| Printing Accuracy | ±0.1 mm |
| Layer Thickness | 0.1 – 0.4 mm (recommended 0.2 mm) |
| Filament Runout Sensor | Yes |
| Resume Printing | Yes |
| Touch Screen | 4.3-inch Capacitive Touch Screen |
| Language Interface | French, Italian, Russian, Spanish, English, Chinese, Japanese, German |
| Camera | Yes |
| Air Filter | Activated Carbon Filter |
| File Type (input) | 3MF, STP, STL, OBJ |
| Printing Material | PA, TPU, ASA, Carbon Fiber Filament, Glass Fiber Filament, PC, PET, ABS, PLA, PETG |
| Rated voltage | 100 – 240 VAC, 50 / 60 Hz |
| Machine Dimensions | 398mm(L) × 404mm(W) × 490 mm(H) |
| Net / Gross Weight | 17.5 kg / 21 kg |
| Option | Centauri Carbon, Centauri Carbon Combo |
