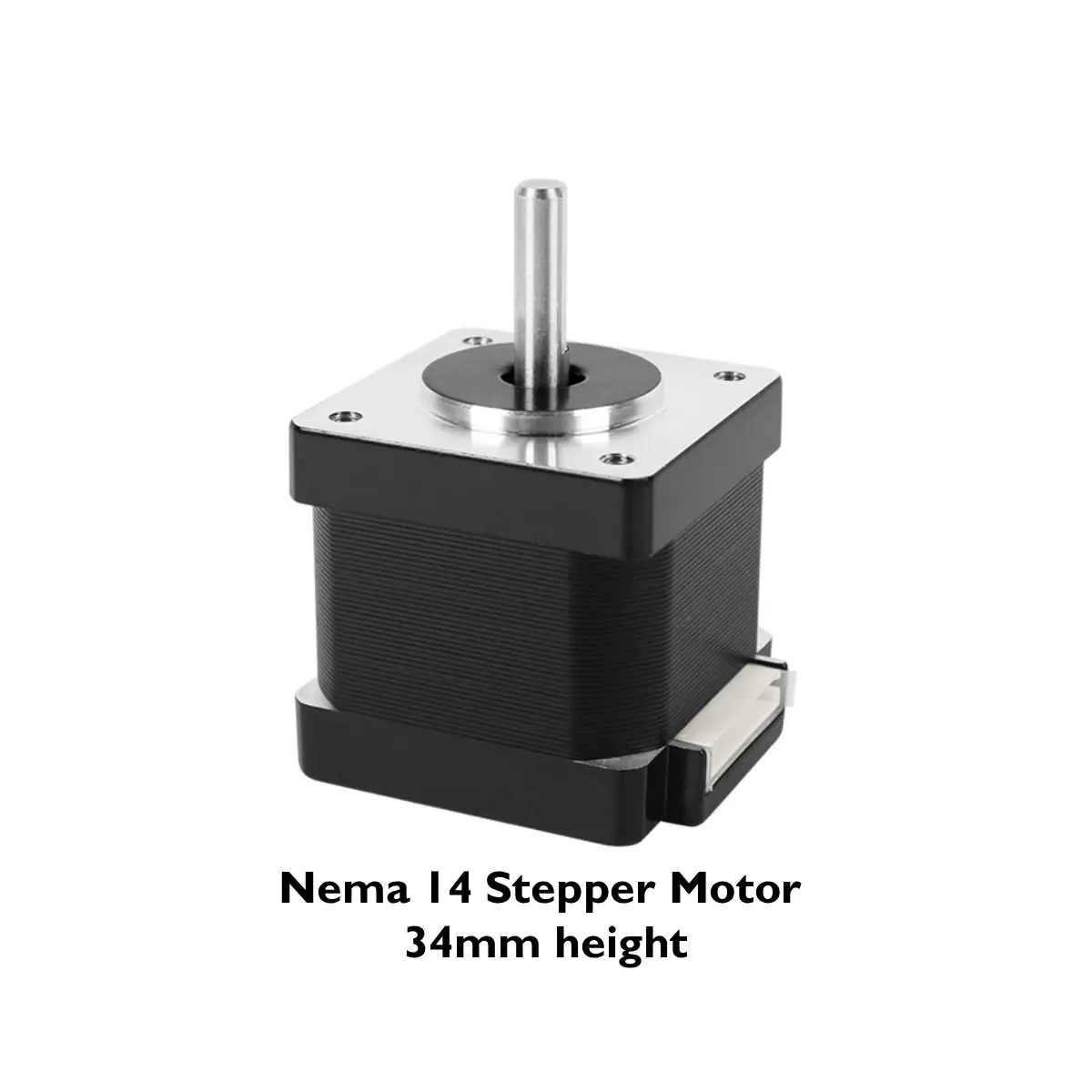

Nema 14 Stepper Motor (34mm)

$23.00

1 x Nema 14 Stepper Motor (34mm)

• Without cable

Out of stock

Model: 14F1D34005-208

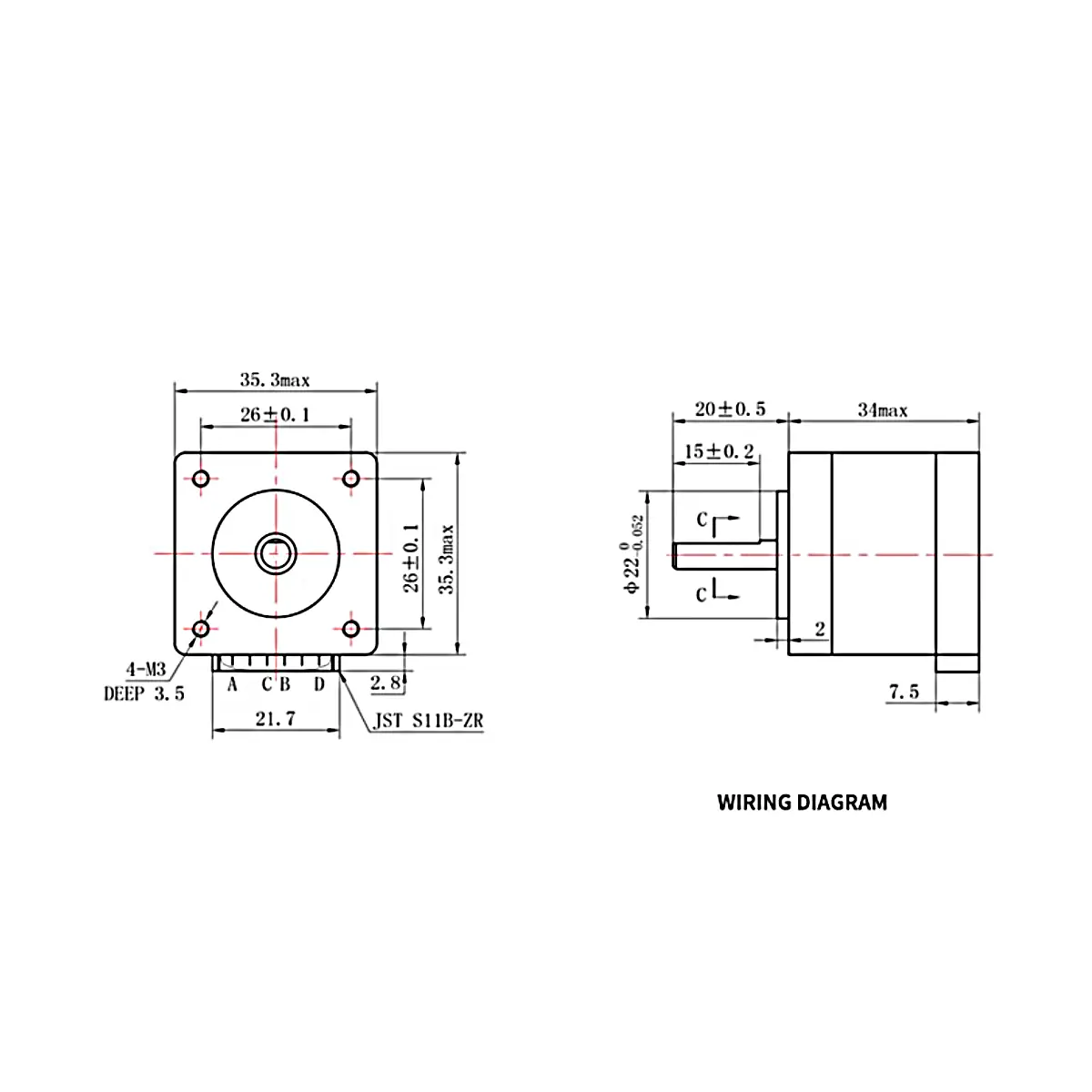

Size (excluded shaft): 35.3 x 35.3 x 34mm
Shaft length: Approximately 20mm
Shaft diameter: 5mm (D Shaft)
Weight: 0.18kg
Step angle: 1.8° ± 5%
Number of Phases: 2
Rated voltage: 3.42v DC
Rated current: 0.6A
Phase resistance: 5.7Ω ± 10% (20°C)
Inductance: 7.5mH ± 20%
Holding torque: 100mN.m
Detent Torque: 12mN.m
Rotor inertia: 20g.cm²
Wiring: Red A+, Blue A-, Green B+, Black B-
