Print Profile

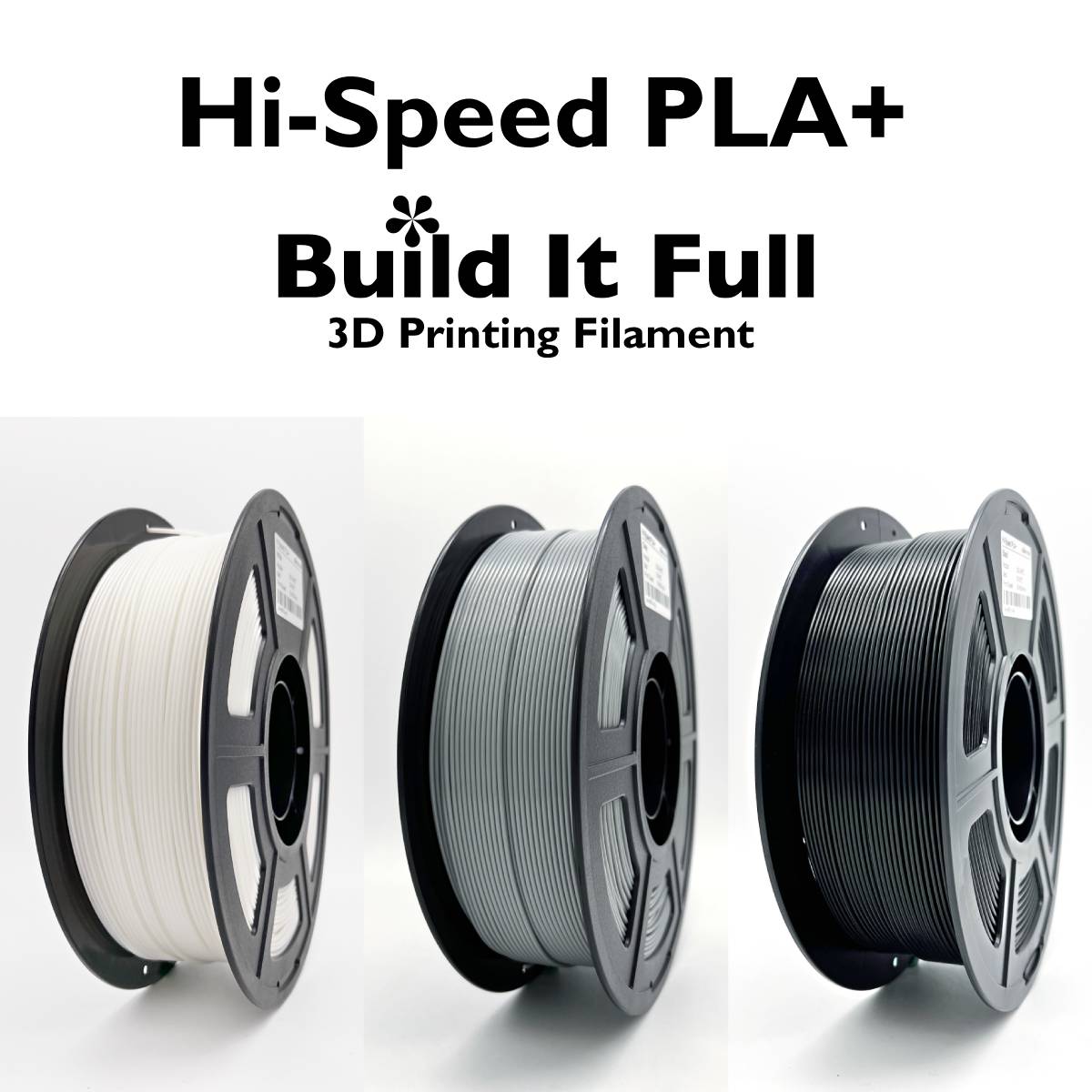

Hi-Speed PLA+ / HS-PLA+
Bmabu Lab 3D Printers
Print Profile: Generic PLA High Speed
Enclosure: Open
Elegoo Centauri Carbon
Print Profile: Elegoo RAPID PLA+
Enclosure: Open
Nozzle
First layer: 220ºc Other layers: 220ºc
Textured PEI Plate
First layer: 60ºc Other layers: 60ºc
Volumetric speed limitation
Max Volumetric Speed: 21mm³/s
Artillery SW-X4 Pro
Nozzle
First layer: 230ºc Other layers: 230ºc
Textured PEI Plate
First layer: 70ºc Other layers: 70ºc
Volumetric speed limitation
Max Volumetric Speed: 21mm³/s
Other 3D Printers
Print Profile: Generic PLA High Speed
Hi-Speed PETG / HS-PETG
Bmabu Lab 3D Printers
Print Profile: Generic PETG HF
Enclosure: Open
Elegoo Centauri Carbon
Nozzle
First layer: 220ºc Other layers: 220ºc
Textured PEI Plate
First layer: 70ºc Other layers: 70ºc
Volumetric speed limitation
Max Volumetric Speed: 16mm³/s
Enclosure: Open
Artillery SW-X4 Pro
Nozzle
First layer: 230ºc Other layers: 230ºc
Textured PEI Plate
First layer: 70ºc Other layers: 70ºc
Volumetric speed limitation
Max Volumetric Speed: 21mm³/s
Other 3D Printers
Print Profile: Generic High Speed PETG
Enclosure: Open
Note:
If you notice the printed surface is rough it could be the printing speed is not fast enough, can try to change the nozzle temperature to 220ºc, or make the printing speed and cooling fan higher.
PLA (Basic) / Matte PLA
Bmabu Lab 3D Printers
Print Profile: Generic PLA
If having first layer adhesion issue, change the Texture PEI Plate setting
Texture PEI Plate
Initial layer: 60ºc Other layer: 60ºc
Elegoo Centauri Carbon
Print Profile: Generic PLA
Artillery SW-X4 Pro
Print Profile: Generic PLA
Other Klipper Based 3D Printers
Print Profile: Generic PLA
Other Marlin Based 3D Printers
Print Profile: Generic PLA
Silky PLA – Single / Dual / Tri-colours
Bmabu Lab 3D Printers
Print Profile: Generic PLA Silk
Elegoo Centauri Carbon
Print Profile: Elegoo PLA Silk
Artillery SW-X4 Pro
Print Profile: Generic PLA (need modification)
Change the Max volumetric speed: 7.5mm³/s
Other Klipper Based 3D Printers
Print Profile: Generic PLA Silk (if available)
Else can use Generic PLA and change the Max volumetric speed: 7.5mm³/s
Other Marlin Based 3D Printers
Print Profile: Generic PLA
Printing speed 50mm/s
Nozzle: 200 to 210ºc
PEI Texture Plate: 55 to 60ºc
PETG (Basic)
Bmabu Lab 3D Printers
Print Profile: Generic PETG
Elegoo Centauri Carbon
Print Profile: Generic PETG-CF
Artillery SW-X4 Pro
Print Profile: Generic PETG (need modification)
Change the Flow Ratio: 0.98
Other Klipper Based 3D Printers
Print Profile: Generic PETG (if available)
Else can use Generic PETG and change the Flow Ratio accordingly, can try 0.98
Other Marlin Based 3D Printers
Print Profile: Generic PLA
Printing speed 50mm/s
Nozzle: 200 to 210ºc
PEI Texture Plate: 55 to 60ºc

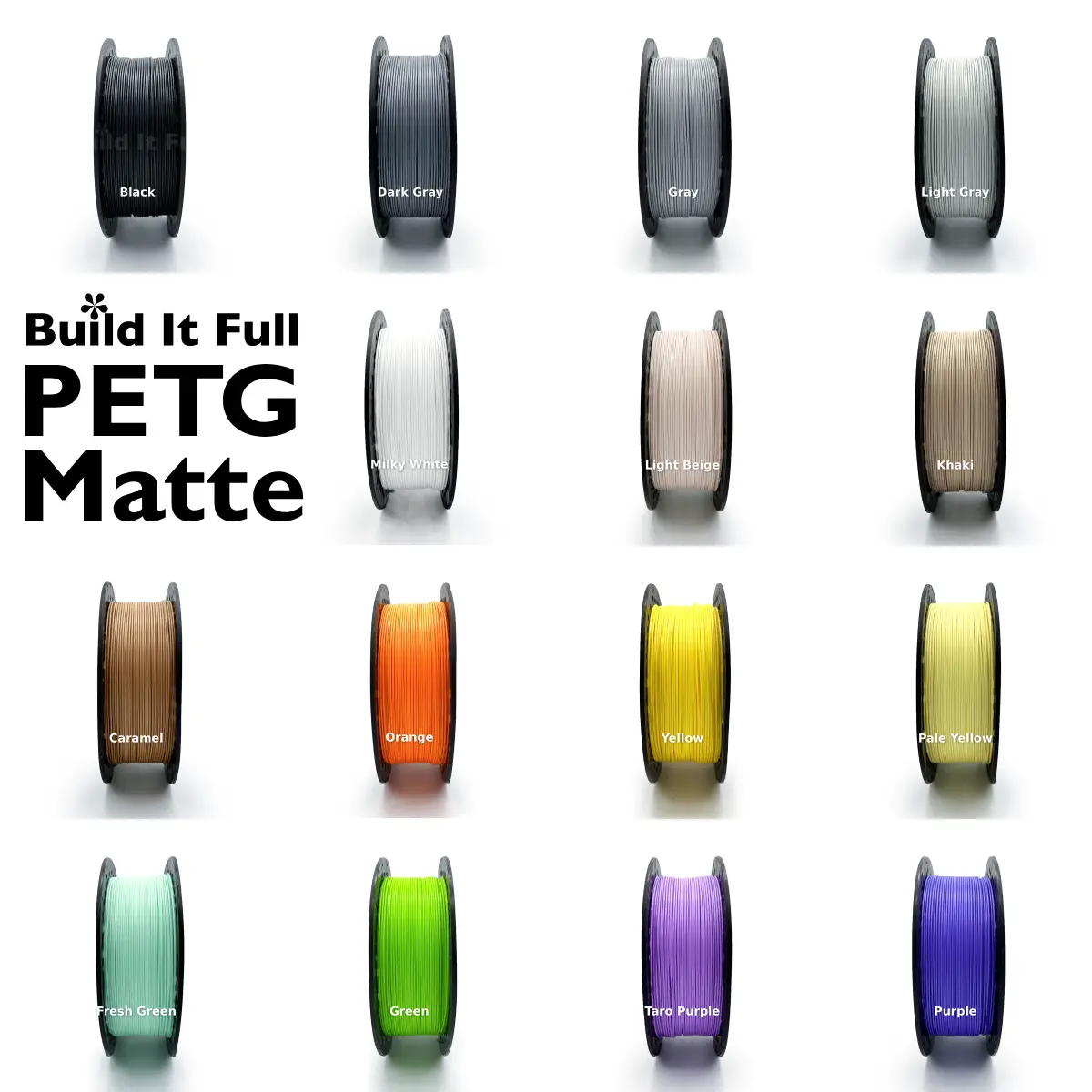

Matte PETG
Bmabu Lab 3D Printers
Note:
Heated bed temperature MUST be lower else the Matte PETG will stick too firm on the bed
Print Profile: Generic PETG (need modification)
Change below setting:
Texture PEI Plate
Initial layer: 50ºc Other layer: 50ºc
Part cooling fan
Fan speed for overhang: 100%
Elegoo Centauri Carbon
Print Profile: Generic PETG-CF (need modification)
Texture PEI Plate
Initial layer: 50ºc Other layer: 50ºc
Artillery SW-X4 Pro
Print Profile: Generic PETG (need modification)
Change the Flow Ratio: 0.98
Texture PEI Plate
Initial layer: 60ºc Other layer: 60ºc
Other Klipper Based 3D Printers
Print Profile: Generic PETG (if available)
Else can use Generic PETG and change the Flow Ratio accordingly, can try 0.98
Texture PEI Plate
Initial layer: 50ºc Other layer: 50ºc
Other Marlin Based 3D Printers
Print Profile: Generic PLA
Printing speed 50mm/s
Nozzle: 230 to 250ºc
PEI Texture Plate: 50 to 60ºc
